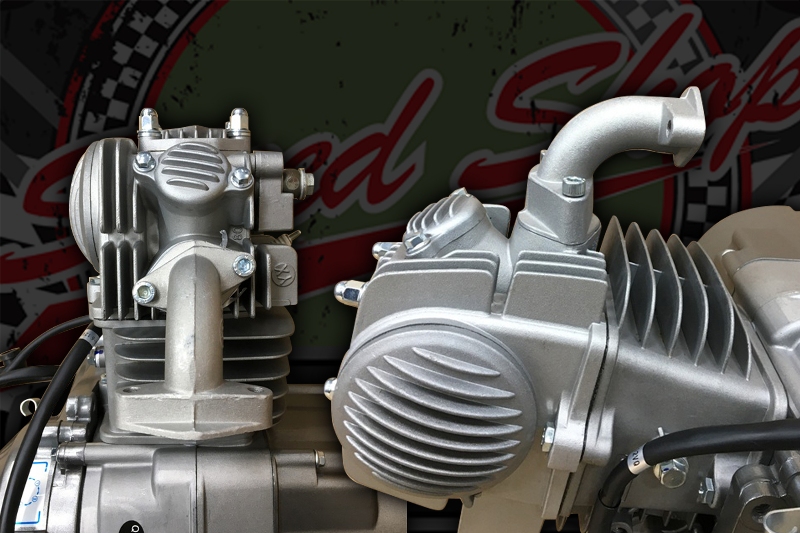

Inlet manifold, 18mm bore Straight back, overall height 67mm XS-83-2
Sits 90 degrees to engine
Manifold to head flange bolt centres 45mm M6 hole
Manifold to carburettor flange 48mm bolt centres M6 holes, Holes sit above centre line “Honda style”
Supplied with heat spacer and gaskets to suit, please note spacer and gasket sizes don’t always match 100% to manifold bore size.
Cast alloy
