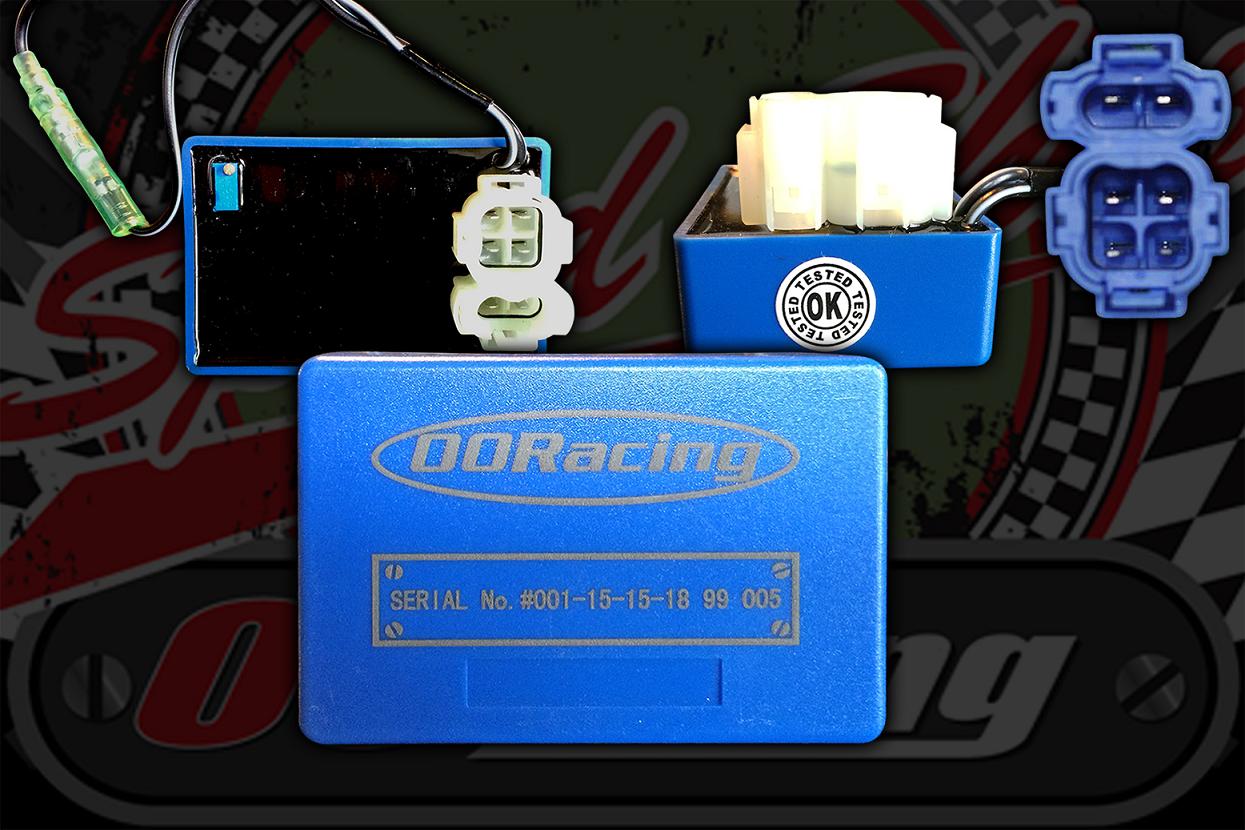

CDI. 6 PIN. Easy Start. Performance unit. Honda compatible type plug

CDI. 6 PIN. Easy Start. Performance unit. Honda compatible type plug
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge

£19.99 £16.66 ExVAT

Product Code: 9306

SADLY NEW VERSION HAS NO REV CONTROL DO NOT ORDER IF YOU WANT REV CONTROL

New version CDI with smoother transit advance curve and improved soft anti vibration gel for better protection.

Fits looms with 6 PIN  A/C Honda Connector.

Will only work with larger flywheels greater than 90mm

Unlike a lot of standard or performance CDI's; This will keep the advance down for starting making the engine far less susceptible to kick back during starting.



Timing and advance info:

  • Safe start system retard.
  • Static 0 to 500 RPM 10 Degrees
  • 1st advance over 500 to 2000 RPM 20 Degrees
  • 2nd Advance over 2000 to 3000 RPM ramping up to 38 degrees overall advance from idle 18 Degrees
  • Advance and static is relevant to pulse coil gap and size of trigger.
  • Recommended pulse coil gap 0.8 to 1.0mm



Specifications:

  • A = 75mm
  • B =22mm



PLEASE NOTE

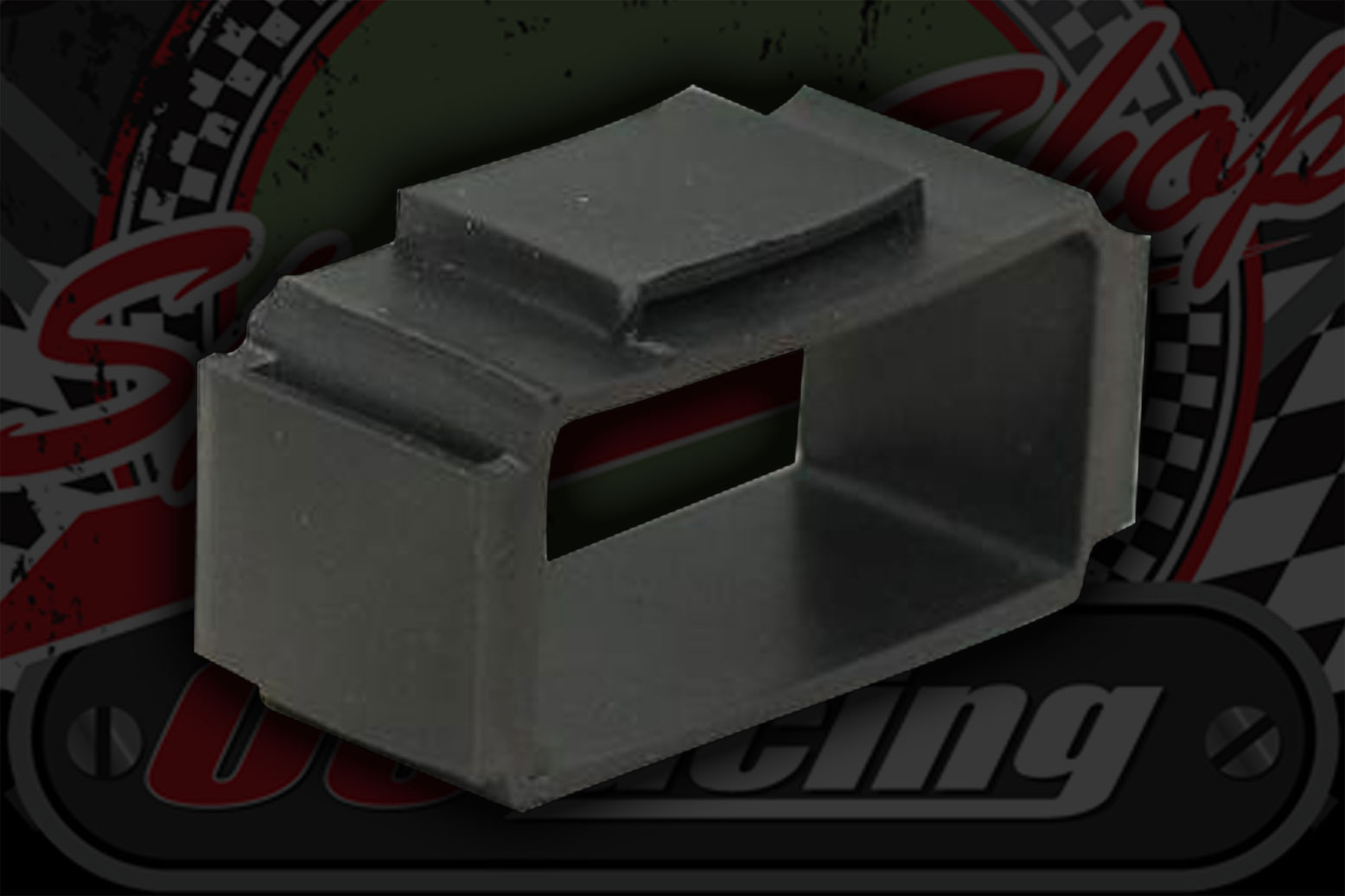

THE CDI REQUIRES RUBBER MOUNTING TO ENSURE LONGEVITY. THESE RUBBER STRIPS ARE IDEAL. ALTERNATIVELY WE HAVE HIGH DENSITY FOAM PADS THAT MAY SUIT YOUR NEEDS.

NOT FOR USE WITH INNER ROTORS



Product Code 9306
Condition New
Weight 0.3Kg
