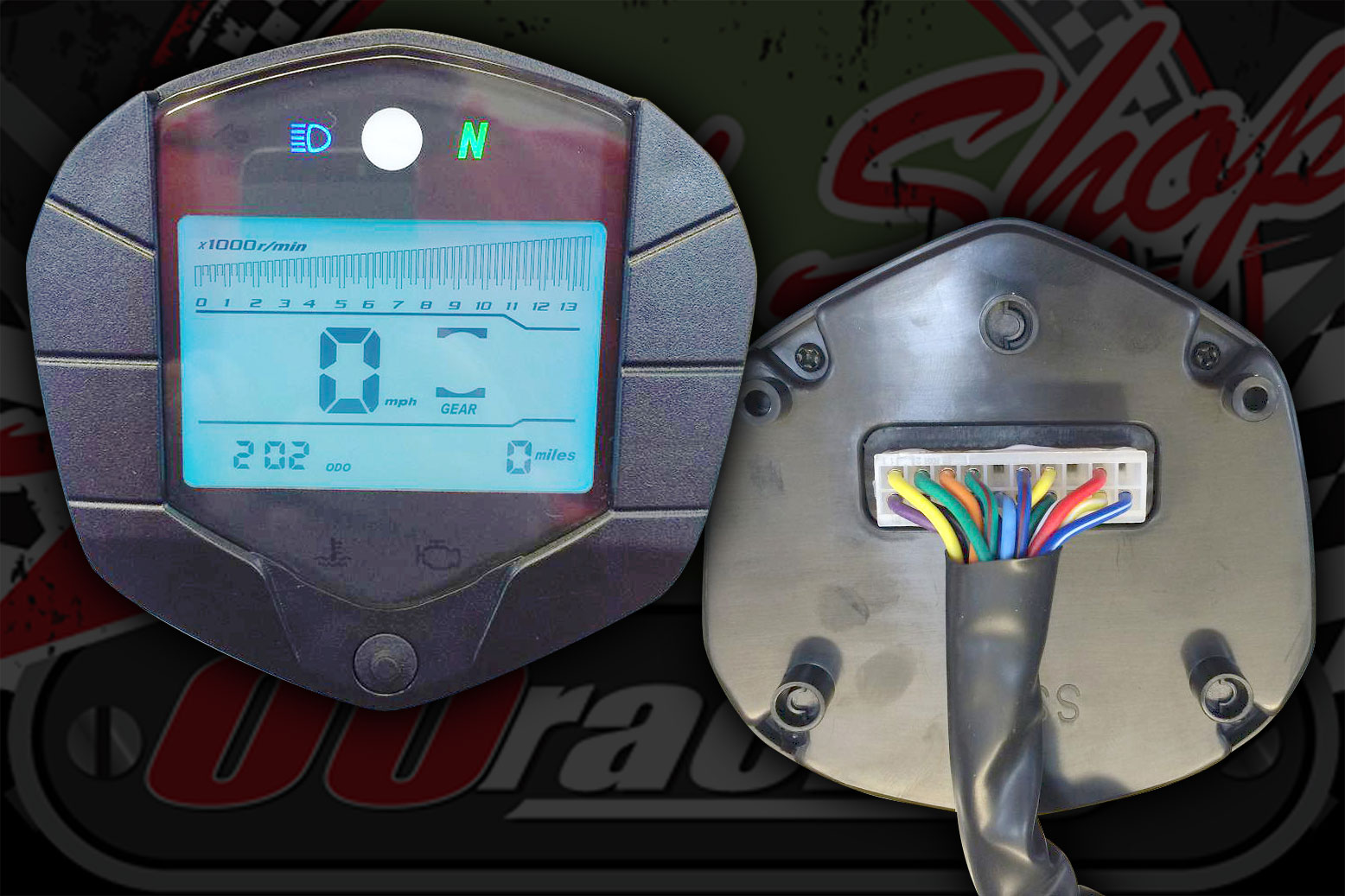

Clock. Speedo. X17. Tachometer/Speedometer. Digital. Universal

Clock. Universal. Digital. Multi function.

Thic clock has all the functions you could ever need to give you the feedback you want whether you are on a long or short journey.

This is an ideal unit for custom builds also, as you can change the back light colour to suit your colour scheme or mood.

Universal fitting clock with many functions:

Kit includes:

• Main body
• Speedo pickup
• Magnets X 2
• Instruction leaflet
• Wiring loom

Functions:

• Tachometer (RPM)
• Speedometer
• Trip
• Fuel level
• Time
• Indicator Left light
• Indicator Right light
• Neutral light
• Gear indicator
• Battery light
• Back light colour
• High beam indicator light
• 1 Button control

Specifications:

• 115mm Widest part
• 115mm tallest part
• 40mm Depth

Wiring:

• Orange - Left Indicator. +12v
• Light Blue - Right Indicator +12v
• Black - Power. +12v
• Green/Red - Neutral gear. Ground
• Purple - Battery. +12v
• Blue/White - RPM. (signal wire - blue white on our CDI's)
• Blue - High Beam. +12v
• Pink - 1st Gear. Ground
• Blue/Red - 2nd Gear. Ground
• Green/Black - 3rd Gear. Ground
• Yellow/Red - 4th Gear. Ground
• Brown/White - 5th Gear. Ground
• Yellow/White - Fuel Level. Resistance

Pickup Sensor. Wiring. Pre-plugged:

• Red -Pick up sensor. Signal
• Yellow - Pick up sensor. +5v feed
• Green - Pick up sensor. Ground

Instructions and specifications:

• X17 Wiring instructions
• X17 Instructions (external link to drop box)
