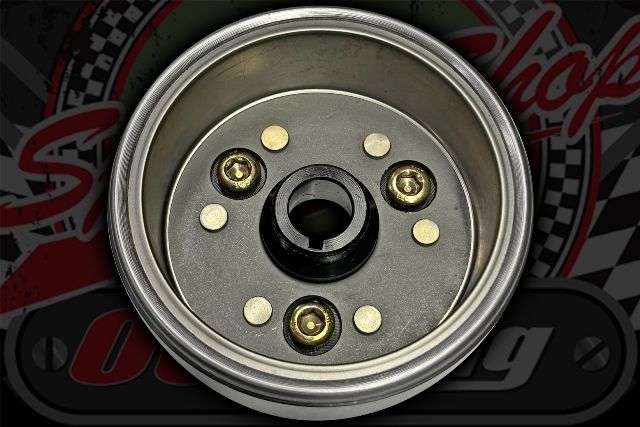

Flywheel Z190/212 replacement for ignition corrector kit, 6 roller starter clutch

Flywheel Z190/212 replacement for ignition corrector kit, 6 roller starter clutch
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge

£49.98 £41.65 ExVAT

This product is currently out of stock


Product Code: 8741

Flywheel Z190/212 replacement for ignition corrector kit, 6 roller starter clutch

We have noticed their is a change in crankshaft tapers, check that the starter clutch can free wheel after tightening up flywheel nut.

If you don't check it the engine will be dragging the starter motor around causing damage.

Larger taper 18/21mm

Long ignition corrector for gaining full advance 16mm

Flywheel I/D 90mm

Flywheel O/D 110mm

Depth 35mm

Overall depth with clutch 52mm

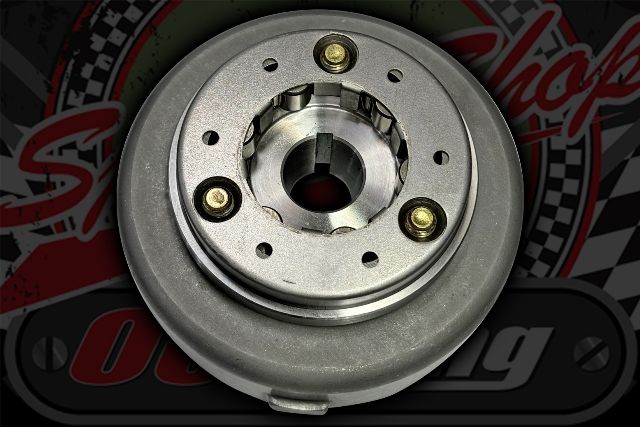

Starter clutch upgrade 6 roller

Do not use with damaged starter clutch hub or it will destroy the rollers always replace when fitting new flywheel.

Works only with our 3 phase coils



Product Code 8741
Condition New
Weight 1.2Kg
