Gear box. Kit to suit GB6 C90 cases 4 speed conversion or lock out 1st gear for Plop enduro

Gear box. Kit to suit GB6 C90 cases 4 speed conversion or lock out 1st gear for Plop enduro
  • Click to enlarge
  • Click to enlarge

£99.00 £83.20
£69.33 ExVAT

This product is currently out of stock


Product Code: 0078

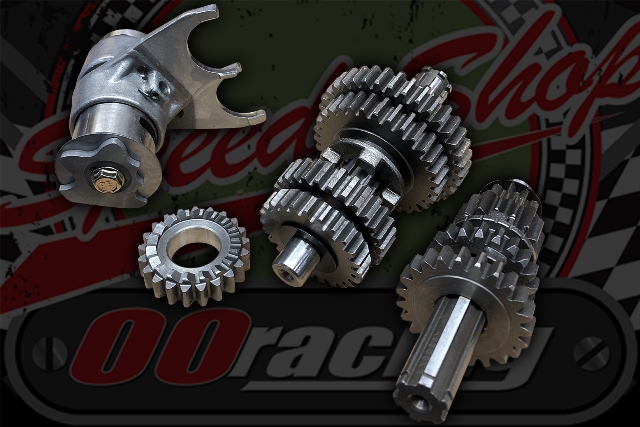

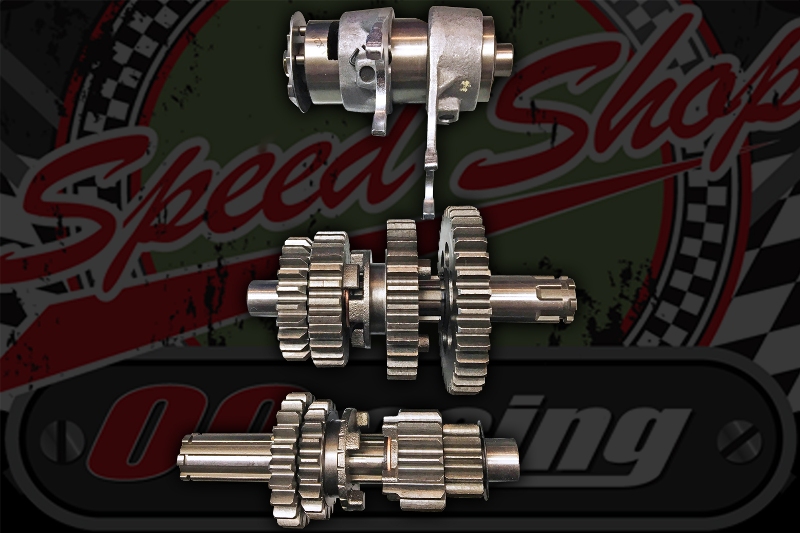

Full gear set 1-N-2-3-4 UP

This kit will fit the C90 Cases GB6

The new selectors don't have the large washer on the selector, use the old one of the C90

With matching kick start gear you just change over on the orignal shaft, 21T

4 speed 1-N-2-3-4 or lock out first to gain a 3 speed close ratio.

Will work with semiauto and manual clutchs

You also need to remove the oil feed from the back of the bearing on the output shaft.

Use selector pawl part number 0524

Input shaft Length 119mm

O/D clutch side 17mm

O/D sprocket side 14mm

1st gear 11T

2nd gear 16T

3rd gear 20T

4th gear 23T

Out put shaft Length 114mm

Clutch side O/D 14mm

Sprocket side 17mm

1st gear 36T

2nd gear 31T

3rd gear 27T

4th gear 24T



3B

Product Code 0078
Condition New
Weight 2Kg
