Generator kit D/C conversion
Full conversion kit with instructions to convert A/C lighting to D/C lighting. 40W

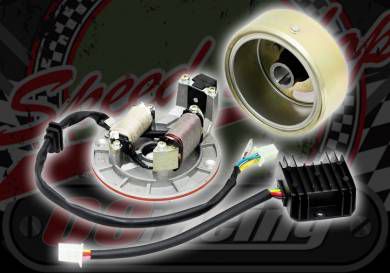

The stator in photo will have bullet conectors/Plug
Flywheel 110mm O/D 890 grams
Taper 16/19mm
Longer trigger for better advance 16mm
Wiring
Ignition
Blue/white = Trigger
Black/red = Sorce coil
Green = Earth
Charging reg/rec
2 x Yellow = Feed from stator direct to reg/rec " can be 2 x white or 1 x Pink & yellow, dose not matter what way around they go"
Red Batt+ via fuse
Green - Neg batt
Black or Brown feed with 12V + switched feed "Not direct to batt"
Not suitable for Performance engines
