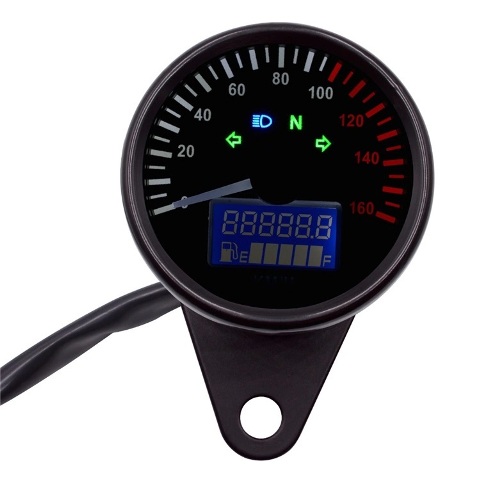

Speedo. 60mm analogue with digital trip/fuel 160KM/H Universal

Speedo. 60mm analogue  with digital trip/fuel 160KM/H Universal
  • Click to enlarge
  • Click to enlarge

£27.00 £22.50 ExVAT


Product Code: 5892

Speedo. 60mm analogue  with digital trip/fuel 160KM/H Universal

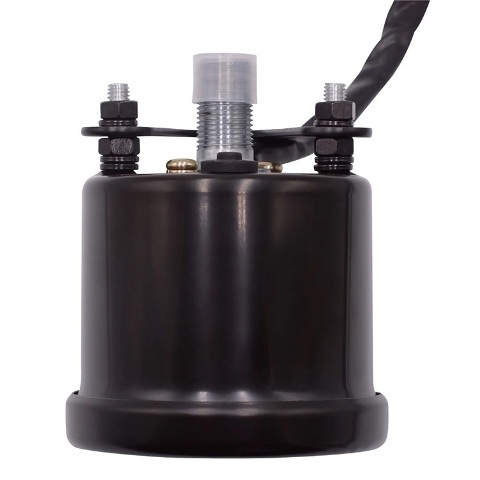

12 mm thread speedo normal square drive

Kit includes:

  • Speedo body 60mm
  • Mounting bracket

Facilities:

  • Trip with re set
  • LED warning lights
  • High beam warning
  • Turn
  • Neutral



Specifications:

  • 60mm Diameter
  • 55mm lenght body only
  • 45mm centers fixing studs
  • M5 Fixing stud thread
  • 52mm mounting bracket hole
  • 10mm mounting hole on bracket



Wiring:

  • Red/Black - Light +
  • Black - Backlight negative (Both blacks connect to negative)
  • Black - Neutral Light negative (Both blacks connect to negative)
  • Green - Neutral light +
  • Blue - High Beam
  • Yellow - Indicator warning light + (No. 1)
  • Yellow - Indicator warning light + (No. 2)
Product Code5892
ConditionNew
Weight0.3Kg
