Switch gear. Includes throttle. Suitable for Monkey or Dax

Switch gear. Includes throttle. Suitable for Monkey or Dax
  • Click to enlarge

£16.99 £14.16 ExVAT

This product is currently out of stock

Product Code: 0824

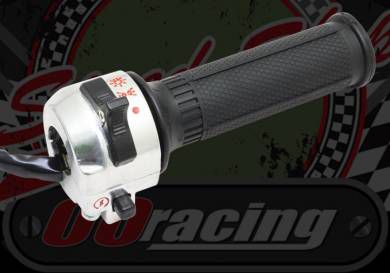

Switch gear. Includes throttle tube and grip. Suitable for Monkey or Dax

Fits on the Standard width 7/8th"  (22mm) bars

Functions:

  • Takes standard twist and lock throttle cable: Part number: 7195 (Not included)
  • Alloy cast body
  • Lights OFF/PILOT/MAIN
  • Start or kill switch



If you need a female plug fitting, purchase: Part number: 8132 select 6 pin.
Use the female plug but with the male pins connected to the wires from the switch gear. Leave green as is.

Wires:

  • 6 pin male connector
  • Green (Seperate bullet connector; Female)
  • Orange
  • Brown/White
  • Brown
  • Yellow

You will have to swap the pins around in the plug as they change each year. Match up the colours as required.


Product Code 0824
Condition New
Weight 0.3Kg
