Clock. Speedo. Rev counter. PBR 50 & 125.

Clock. Speedo. Rev counter. PBR 50 & 125.
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge

£44.99 £37.49 ExVAT


Product Code: 9811

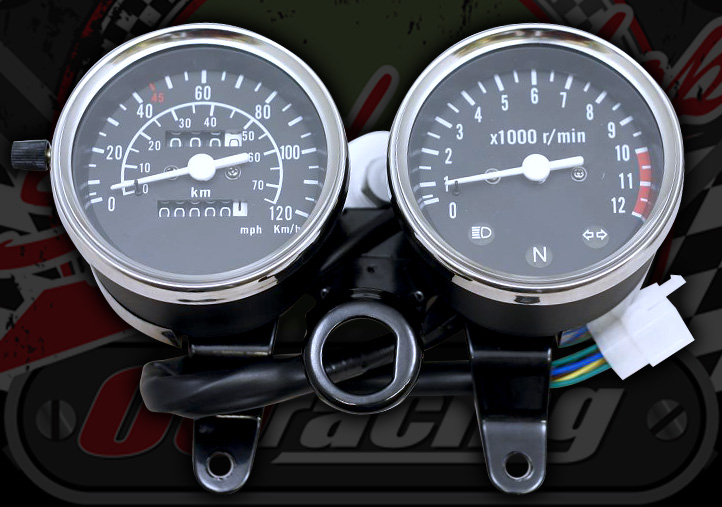

New set fo clocks for the skytem PBR 50 & 125

Ingnition switch mount and mounting brackets

Electronic rev counter works of pulse coil from engine



Specifications:

  • 100mm bolt mounting centers
  • 95mm Diameter clock bezel
  • 24mm Diameter ignition switch aperture (with 1 straight edge)
  • 80mm Depth clock
  • 300mm Loom
  • 12mm square drive



Warning lights:

  • Neutral
  • High beam
  • Turn



Functions:

  • Speedo 120kmh/75mph
  • Trip & Odometer
  • Rev counter 12000rpm Max



Wiring:

  • Yellow/black = CDI pluse signal
  • Orange = Turn
  • Light Blue = Turn
  • Blue = High beam
  • Green = Neg earth
  • Green/red = Neutral light
  • Brown = Back light
  • Black = + switch feed in



Product Code 9811
Condition New
Weight 1.3Kg
