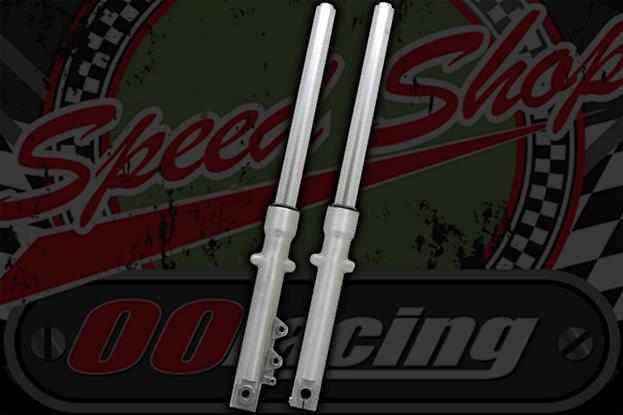

A pair of fork legs for the Sach Madass bikes.
The new batch we have are silver painted
Specifications. Right leg:
- 730m Length overall
- 350mm Length Leg
- 370mm Length Stanchion protrusion
- 37mm Diameter Stanchion
- 46.5mm Diameter Outer housing
- 57mm Diameter Throat
- 20mm Diameter Axle aperture
- M8 Pinchbot to secure Axle
- 22mm Hex nut Caps
- 61mm centers mud guard fixing points
- M8 Threaded mud guar holes
Specifications. Left leg:
- 730m Length overall
- 350mm Length Leg
- 370mm Length Stanchion protrusion
- 37mm Diameter Stanchion
- 46.5mm Diameter Outer housing
- 57mm Diameter Throat
- 15mm Diameter Axle aperture
- 22mm Hex nut Caps
- 61mm centers mud guard fixing points
- M8 Threaded mud guar holes
- 55mm Centers Brake mounting apertures
- 10mm apertures in brake lugs
- m5 threaded hole below brake lugs
