Head Lamp Custom. 6.5

Head Lamp Custom. 6.5
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge

£24.98 £14.40
£12.00 ExVAT


Product Code: 0047A

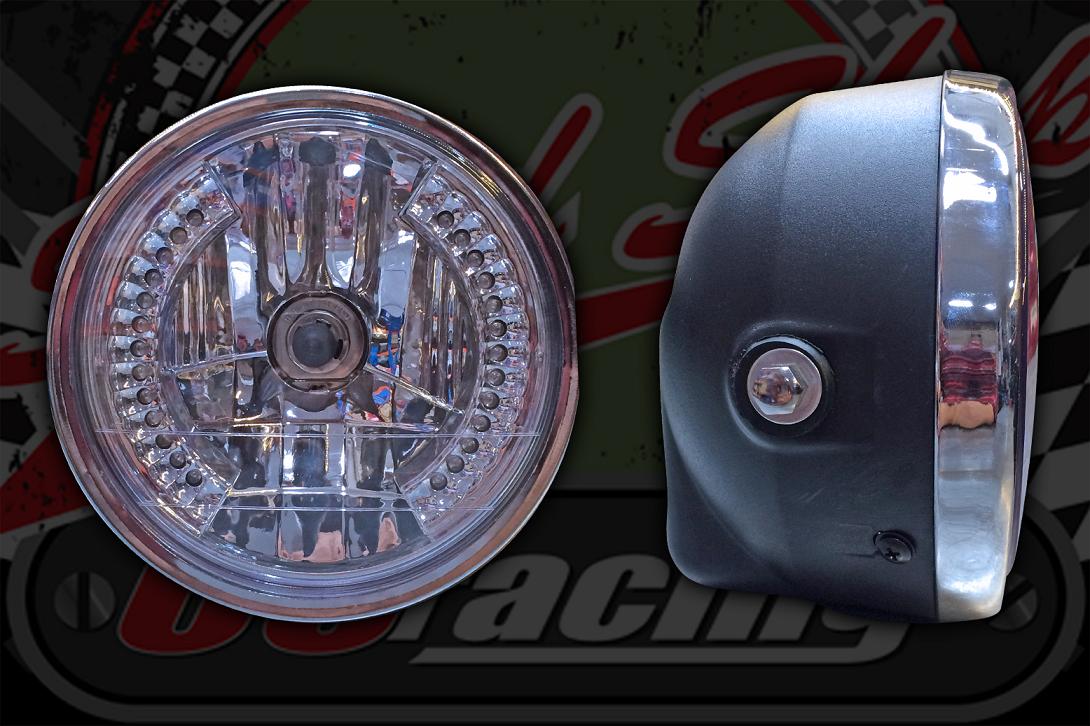

Custom Head lamp. 35w/35w halogen bulb. Array of LED indicators.

Specifications:

  • Large 6.5" Lens Not E4 approved

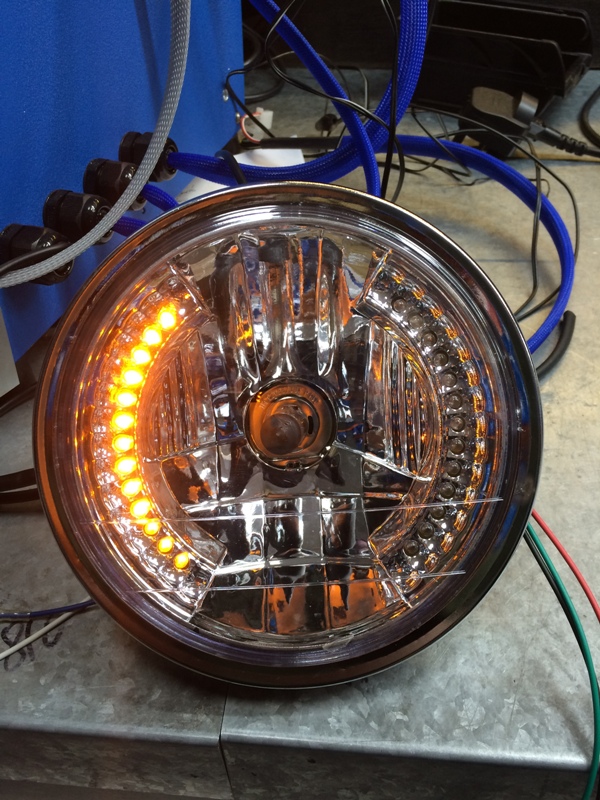

  • Arc Array LED indicators inside lens 13 LEDS per side.

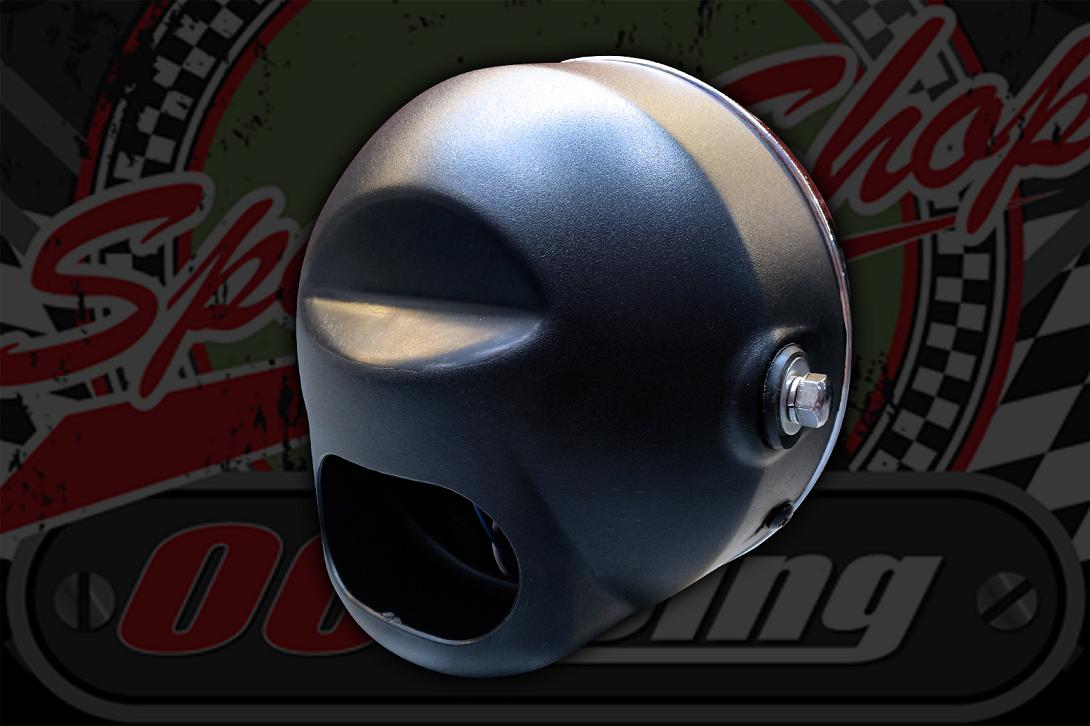

  • Shock Resistant Black satin ABS plastic shell
  • Chrome Bezel
  • 2 bolt fixing
  • 9 wire loom

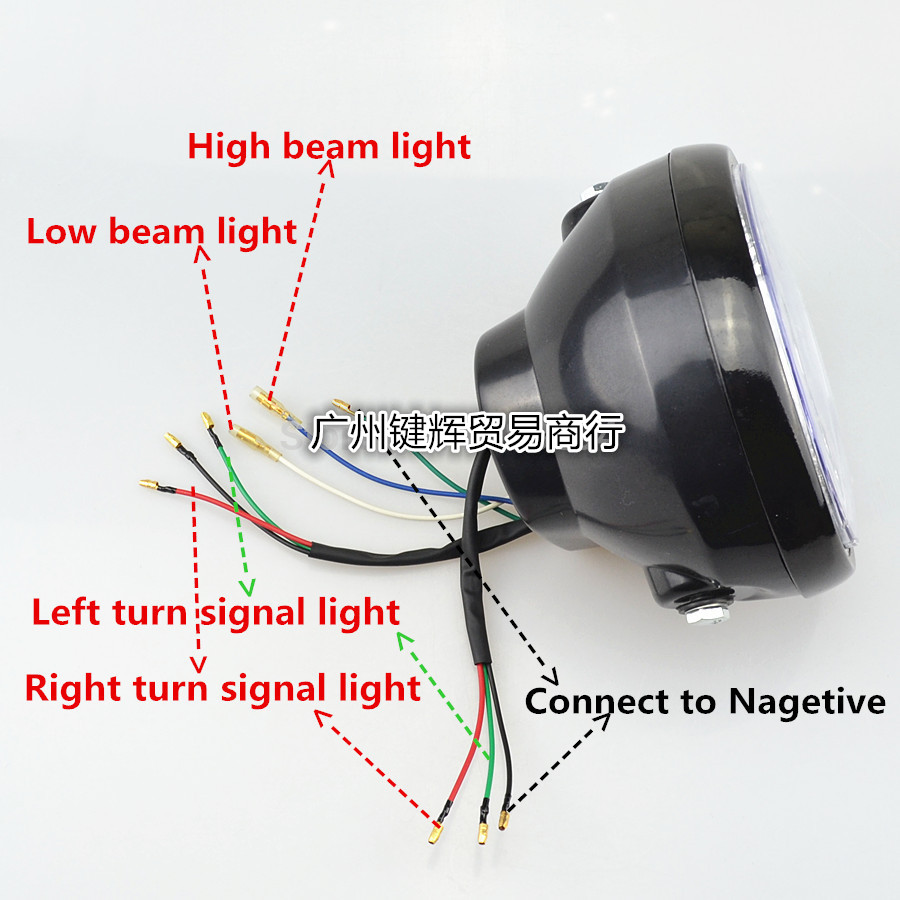

Wires. Headlight:

  • White - Dipped (12V)
  • Blue - High Beam (12V)
  • Green - Neutral (0V)



Wires. Indicators:

  • Red - Positive feed (12V)(Male bullet connector)
  • Black - Neutral feed (0V)(Male bullet connector)
  • Green - (not for normal use)

Sold below cost price non refundable





Product Code 0047A
Condition New
Weight 0.75Kg
