Kick start gear repair kit YX 1149 150 160 170 4V

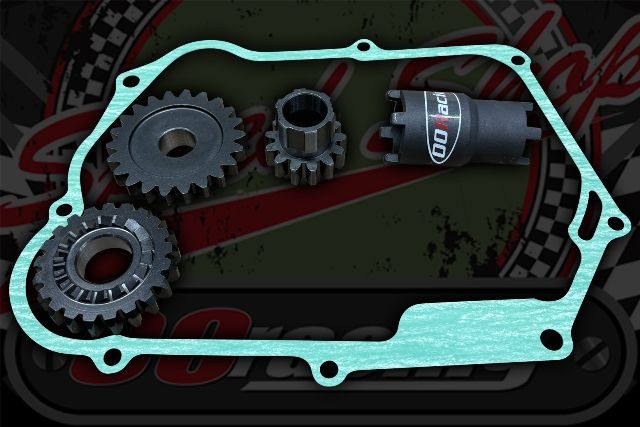

1 x set of kick start gears

1 x Clutch cover gasket

1 x clutch & oil spinner removal tool

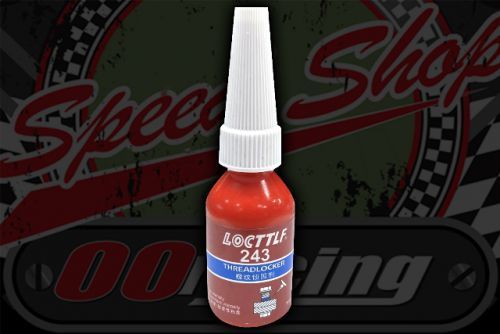

1 x Thread lock 243





Specifications. Left in image:

  • 33.8mm Length Overall
  • 9.6mm thick teeth
  • 34mm Diameter around gears
  • 13 Tooth
  • 17mm Internal Aperture



Specifications Middle one in image:

  • 9.8mm thick teeth
  • 53.3mm Diameter External
  • 21 Tooth externally
  • 18 tooth on top (one way slip)
  • 20mm Internal Aperture



Specifications. Right in image:

  • 7.1mm thick teeth
  • 14mm Overall Thickness
  • 6.0mm Thick notched (Stub)
  • 22.0mm Diameter External (Stub)
  • 22 Tooth External
  • 57.2mm Diameter External
  • 15mm Aperture
Product Code 2312
Condition New
Weight 0.9Kg
