New gear set for needle roller type gear box

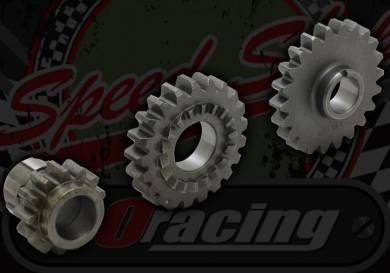

Specifications. Left in image:
- 33.8mm Length Overall
- 9.6mm thick teeth
- 34mm Diameter around gears
- 13 Tooth
- 17mm Internal Aperture
Specifications Middle one in image:
- 9.8mm thick teeth
- 53.3mm Diameter External
- 21 Tooth externally
- 18 tooth on top (one way slip)
- 20mm Internal Aperture
Specifications. Right in image:
- 7.1mm thick teeth
- 14mm Overall Thickness
- 6.0mm Thick notched (Stub)
- 22.0mm Diameter External (Stub)
- 22 Tooth External
- 57.2mm Diameter External
- 15mm Aperture
