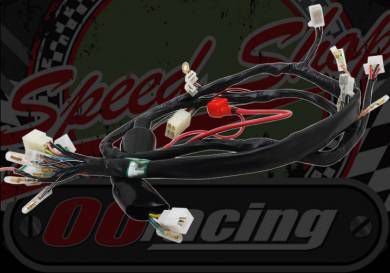

12V CDI type split phase charging with added wiring functions.
We have made this kit based on the 12V loom but we have added in the below
1 X Rev counter signal wire in the head light
1 X 12V + constant power in the head light
2 x 12V + extra switch power feeds
The wiring diagram below gives you a good idea of the wiring but it may vary in colour
Wiring diagram: For normal light switch

ALTERNATIVE LOOM THAT WILL WORK
