Loom Electrics kit. Put your bike on the road. 100W 3 phase. SS3

Electrics kit to put your bike on the road 100W 3 phase

We have had a number of calls asking how you can get your bike on the road.

Here we have made a full electrics kit so all you need is a bike and lights.

The kit is made to the common pit bike length but will fit others.

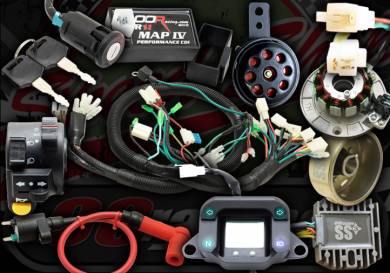

Full spec:

• Loom H/D ooracing
• Super spin gen kit 530g 100W 3 phase
• Reg/rec 100W
• R11 4 Pin CDI
• R11 Coil
• X11 Dash with LDC programmable Speedo
• Multi function switch gear Lights, Horn, Turn, High/Low beam
• Horn DB
• 2 way ignition switch with 2 keys

Speedo options

• X11 Is in the photo with loom

• X17 Is the one with rev counter in photo on its own

The kit is made so all you have to do is fit the stator to the engine and fit the components.

Every thing that will come in the box will already be plugged in and working.

All you need to complete:

• Flasher unit
• 4 x Flasher
• Rear light
• Head light
• Battery 12V

Wiring information:

• Wiring diagram
• Pin diagram
• Wiring document (explains colours and use)

Instructions and specifications:

• X11 Wiring instructions
• X11 Instructions (external link to drop box)
• X17 Wiring instructions
• X17 Instructions (external link to drop box)

PLEASE NOTE

THE CDI REQUIRES RUBBER MOUNTING TO ENSURE LONGEVITY. THESE RUBBER STRIPS ARE IDEAL. ALTERNATIVELY WE HAVE HIGH DENSITY FOAM PADS THAT MAY SUIT YOUR NEEDS.
