Loom Wiring. Suitable for use with ACE 50cc 125cc 3 types

Loom Wiring. Suitable for use with ACE 50cc 125cc 3 types
  • Click to enlarge

£25.00 £20.83 ExVAT


Product Code: 9149

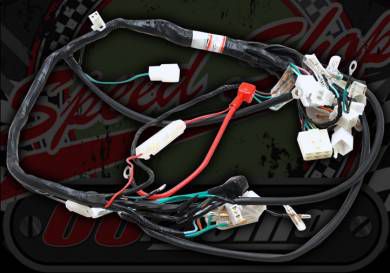

Wiring loom. Suitable for use with ACE 50 &125

Label on loom should be the below

36610-27A00 :  for Euro 3 type, before September, 2014 ( Normal head light switch )

36610-27A01 :  for Euro 3 type, from Sep, 2014 to Oct, 2015 ( Normal head light switch )

36610-27A02 for Euro 3 type Post 2014 (Automatic light on)

You can also see if the 2 pin Diode is at the front of the loom its the pre 2014 and if its mid way by the engine plug its post 2014



Product Code 9149
Condition New
Weight 0.3Kg
