Rojo EFI EURO 4 OR 5 50cc to 72cc conversion to carb upgrade for tuning Skyteam, Bullet, Heritage Monkey.

Rojo EFI conversion to carb upgrade for tuning 50cc  up to 72cc Skyteam Monkey & DAX

EURO 4 OR EURO 5 SEE DROP DOWN

Made for 2019 2020 bikes from skyteam

Choice of coil colour in drop down list

Also choice of added silicone cover and/or rev control switch for CDI in drop down list

NO LONGER SUPPLIED WITH SPARK PLUG

Fitting video on the ignition part https://www.youtube.com/watch?v=ZFQqM0-YGVE&t=5s

A lot of you want to tune your new fuel injected monkey but the limitations of the EFI prevent this. So we have made this kit that will plug and play into the original wiring loom.

Please check that wires in the plugs line up with the correct wires on bike loom

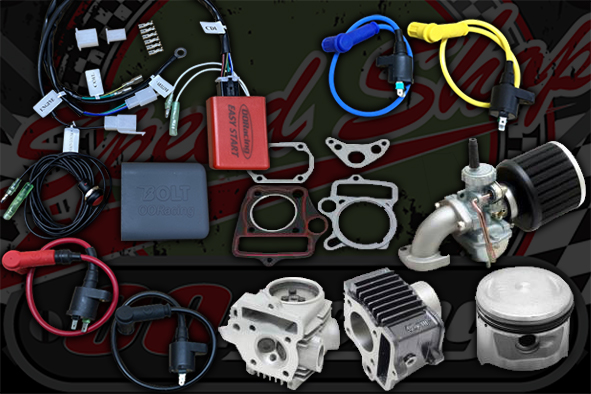

2 parts to the kit

1 x 4 pin D/C CDI (choice of silicone cover and switch)

1 x Micro wiring loom

1 x Performance coil 12V (choice of colour)

All prewired with matching plugs to suit the Rojo EFI Skyteam Monkeys

Carburetion

1 x 22mm oval bore pre jetted

1 x 22mmmm Manifold

1 x Force air filter choice of colours in the drop down.

1 x Throttle cable

1 x Flywheel "EURO 5 ONLY"

If you also want the DAX fuel tap kit for this conversion please see product code 3185

You will need to change the rear sprocket too as the 50cc gearing will be to low and will end up bending valves

Why have we made the kit.

Well if you’re happy with the stock bike with EFI that’s fine, but when you want to run a free flowing exhaust and gain more mid to top end power with the option of using taller gearing then you will need this kit.



Dyno tests

Stock set up EFI

Speed max 28 mph

Bhp 1.6 average

Rev limiter kicks in at a fixed 7900 RPM

Lazy response



With conversion kit to carb:

Speed max 55 mph

Bhp 7 bhp  average

Rev limiter kick in around 11,500



You need to blank off the return feed on the petrol tank

For the DAX we do a fuel tap kit see part number: 3185

This kit is for use with a free flowing exhaust.

You can also add one more tooth to the front sprocket, its can now pull it..



Before plugging in check the wire colours alight with the loom.

6 pin plug with 1 Black/red wire should align with black on the loom plug.

2 pin plug Green to green Blue/white to Blue/white



  • E22 head with 23/20mm valves
  • Cylinder kit. Cast iron. 12V
  • Piston kit with rings 12V
  • Cam sprocket and bolts
  • Gaskets required to fit the kit.
Product Code 3663
Condition New
Weight 5Kg
