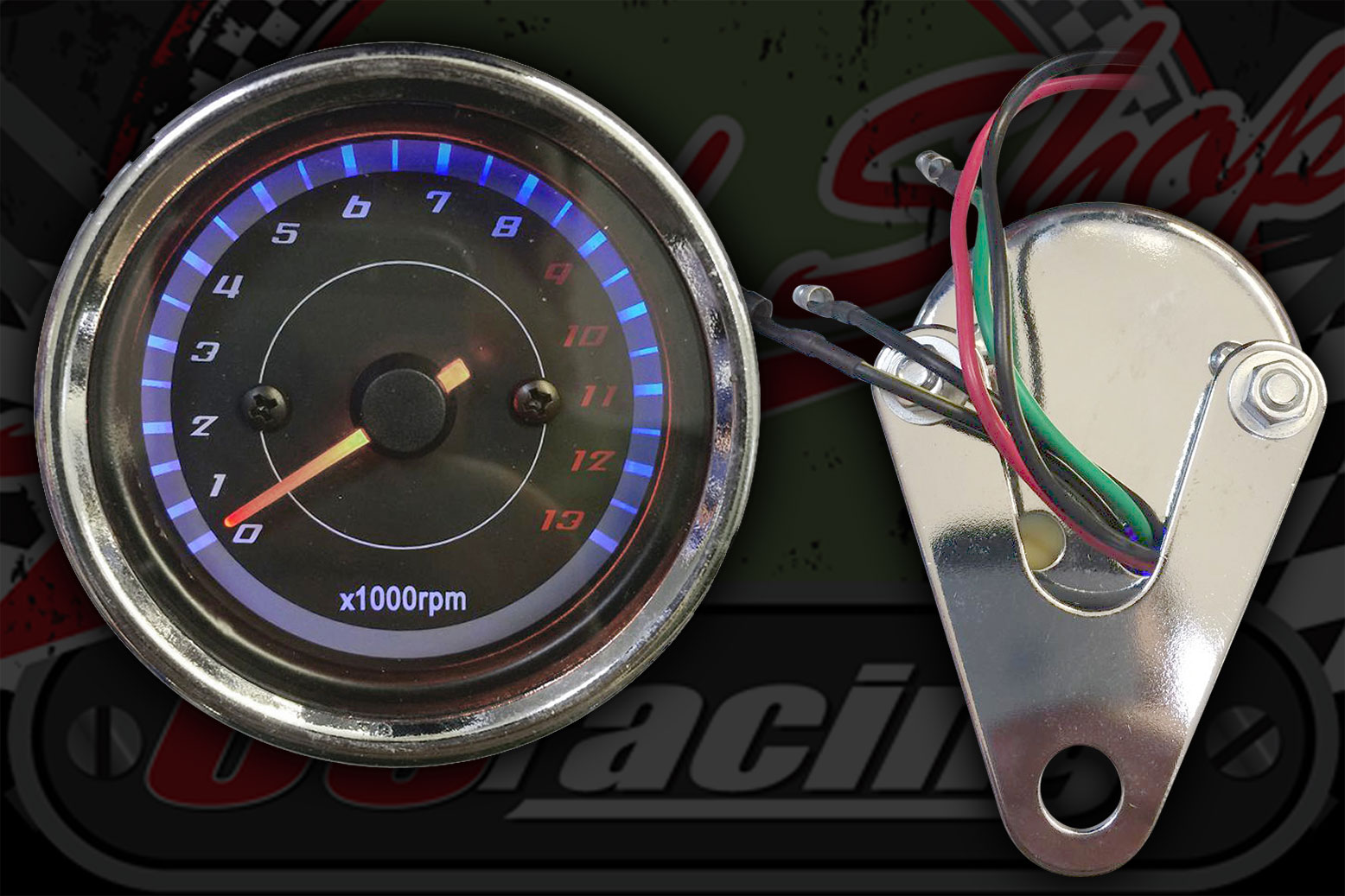

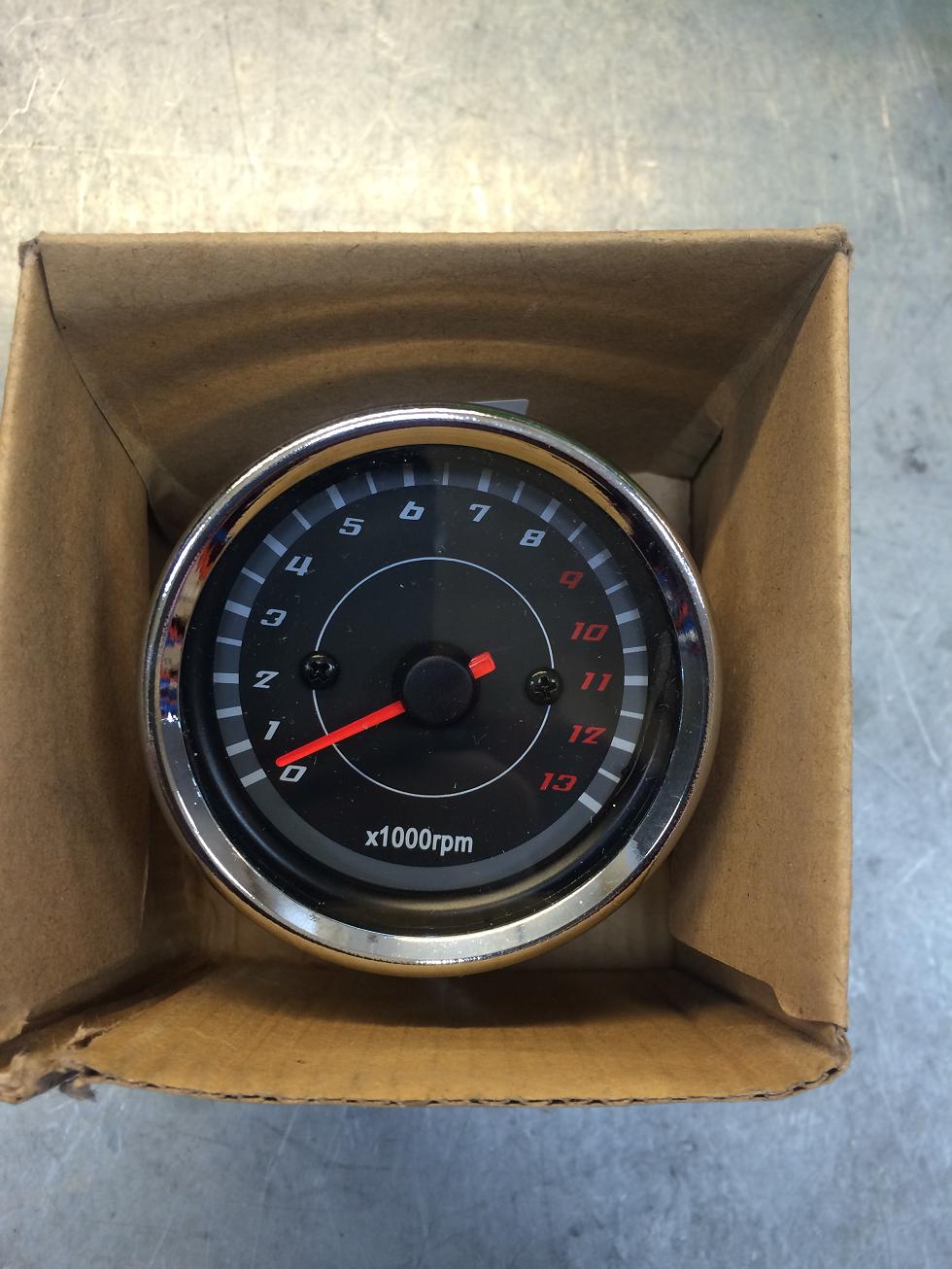

Now with choice of black or chrome bezel
Black face with blue back light
12V
Can be just connected to the Blue/white from CDI
Specifications:
- 60mm Diameter
- 55mm lenght body only
- 45mm centers fixing studs
- M5 Fixing stud thread
- 52mm mounting bracket hole
- 10mm mounting hole on bracket
Wiring. Long:
- Red - Positive backlight
- Black - Negative backlight
Wiring. Short:
- Black - Positive
- Green - Negative
- Black/Yellow - RPM Signal pulse only not voltage from coil
