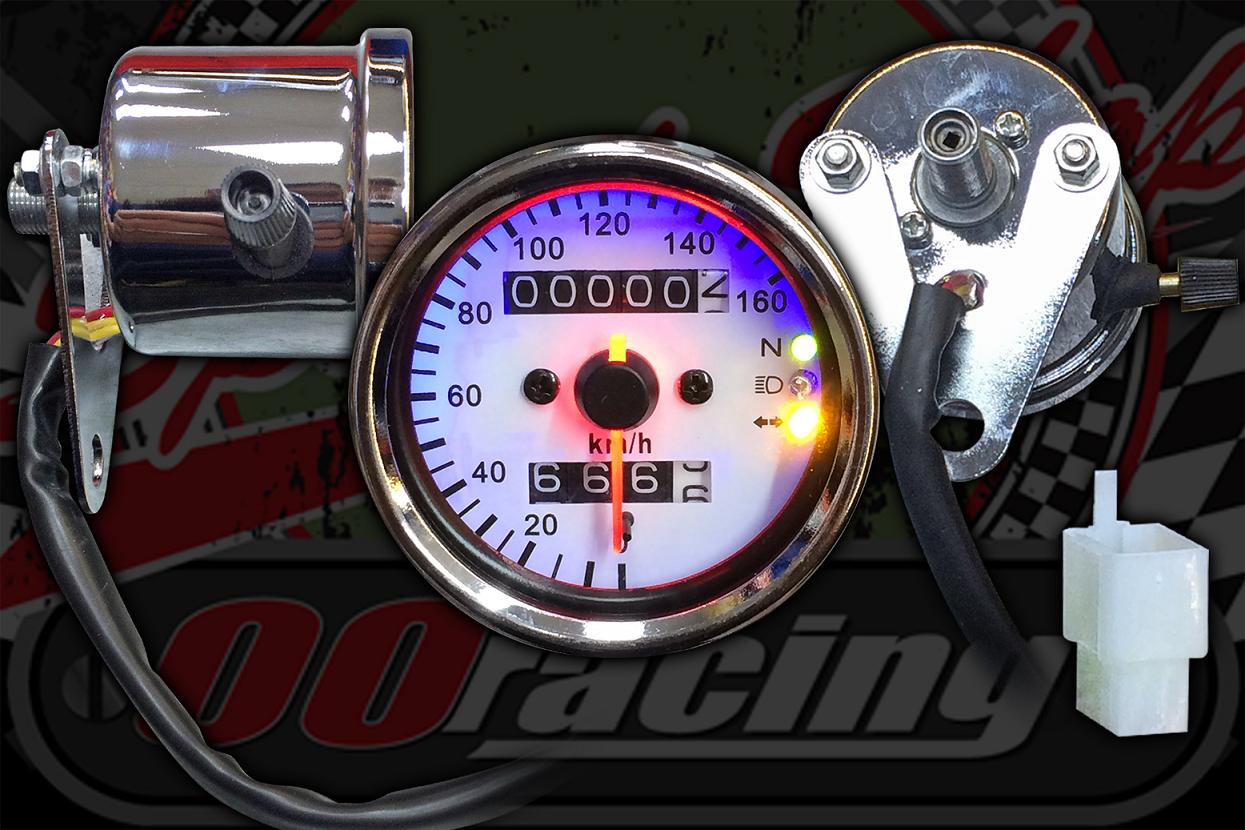

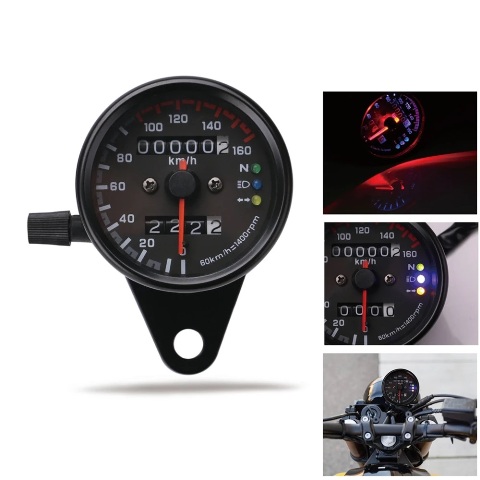

60mm speedo with trip 160KM/H Universal
Choice below
White face chrome body
Black face black body
Black face chrome body HAS NO TRIP AT BOTTOM OF GAUGE
12 mm thread speedo normal square drive
Kit includes:
- Speedo body
- Mounting bracket
- Connector plug ( not plugged in)
Facilities:
- Trip with re set
- LED warning lights
- High beam warning
- Turn
- Neutral

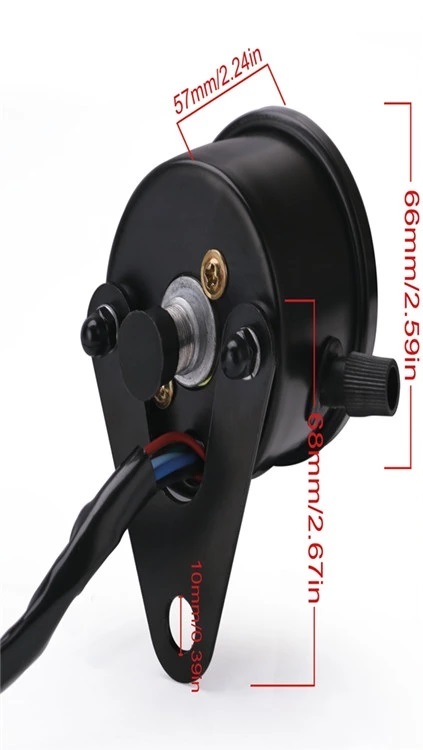

Specifications:
- 60mm Diameter
- 55mm lenght body only
- 45mm centers fixing studs
- M5 Fixing stud thread
- 52mm mounting bracket hole
- 10mm mounting hole on bracket
Wiring:
- Red/Black - Light +
- Black - Backlight negative (Both blacks connect to negative)
- Black - Neutral Light negative (Both blacks connect to negative)
- Green - Neutral light +
- Blue - High Beam
- Yellow - Indicator warning light + (No. 1)
- Yellow - Indicator warning light + (No. 2)
