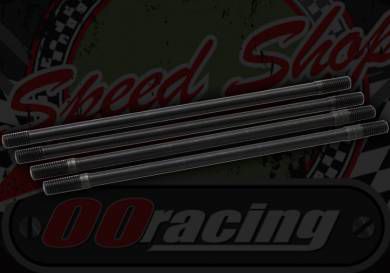

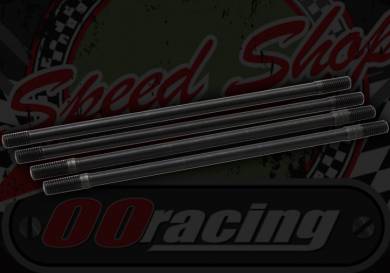

Studs cylinder 8mm Yx 150/160

Studs cylinder 8mm Yx 150/160
  • Click to enlarge

£10.00 £8.33 ExVAT

Product Code: 4110

Set of 4 studs. 8mm threads

Specifications. Right Side. (Shorter studs):

  • 208mm Length
  • 6.3mm diameter main shaft
  • 7.8mm Shoulders
  • M8 Thread
  • 1.25mm Pitch
  • 18mm Thread Length (threads into Crank)
  • 20mm Thread Length (Head end)



Specifications. Left Side. (Longer studs):

  • 213mm Length
  • 6.3mm diameter main shaft
  • 7.8mm Shoulders
  • M8 Thread
  • 1.25mm Pitch
  • 15mm Thread Length (threads into Crank)
  • 20mm Thread Length (Head end)



Product Code 4110
Condition New
Weight 0.3Kg
