Swing Arm. +2. Girder. Braced. Suitable for use with Monkey style bikes

Swing Arm. +2. Girder. Braced. Suitable for use with Monkey style bikes
  • Click to enlarge

£59.99 £17.99
£14.99 ExVAT

This product is currently out of stock

Product Code: 4058

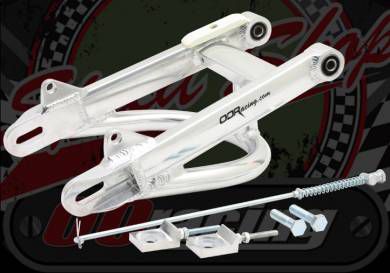

Swingarm +2 braced suitable for monkey bike

Full alloy construction for use with 8" wheels 3.50 tyres and lower profiles

Kit includes:

  • 28cm Swingarm (26cm is standard length)

  • With rubber swinging arm bushes you only want to tighten the pivot bolt enough so the centre of the bush can still rotate on full swing.

    Don’t run the chain too tight or it will rip out the left side bush.

    Bigger CC high torque engine will hammer the bushes



PLEASE NOTE:

Clearnce price no chain adjusters bolts or brake rod

For use with 240mm and shorter shocks.

These were manufactured with the brace at the wrong angle. There is less travel between the brace and the frame. Hence the reduced price.

Modification may be required to stop the swing arm from bottoming out on the frame.

Brace can be cut off

Length of swing arm is measured from Centre of wheel axle aperture to centre of frame bolt aperture.




Product Code 4058
Condition New
Weight 5Kg
