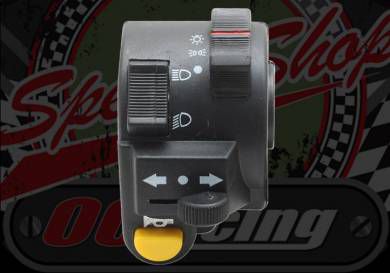

Switch gear all in one universal Normal switched hornfits 9301 loom
Fits on the Standard width 7/8th" (22mm) bars
This is a OORacing product made in a better grade than the normal type, has a positive feal.
We have made this switch with so you can use them with A/C or D/C powered lights
Functions:
- Lights on side & main
- Horn push on Neg switched horn this is the most common set up for bikes
- Indicator switch L/H x R/H
- High beam/low beam
- Pre wired harnes 50cm long with 9 pin plug can be cut off and re wired by your selfs.
Wiring info
| BLACK | FEED IN + |
| LIGHT GREEN | HORN FEED - |
| GREY | FLASHER FEED IN + |
| ORANGE | FLASHER R/H + |
| LIGHT BLUE | FLASHER L/H+ |
| PINK | LOW BEAM + |
| YELLOW WHITE | HIGH BEAM + |
| YELLOW | MAIN LIGHTS FEED IN + |
| BROWN | SIDE LIGHTS + |
| GREEN | NEG IN EARTH - |
