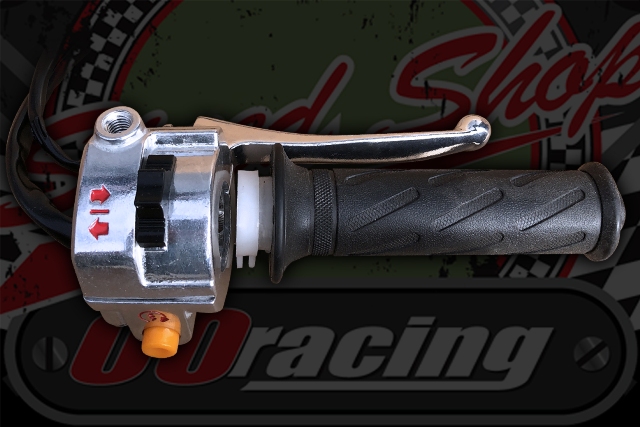

Switch gear, front brake lever and throttle Cub 90 Electric start
Switch gear with
Start button can be used as kill also
Flashers left and right.
Front brake light switch
For stock 7/8 22mm bars
Wiring
Grey flasher = feed in
Orange = R/H
Blue = L/H
Green = Neg
Brake switch
Black = 12V feed in
Green/yellow = feed to light
