Tank. Cafe racer. Suitable for ACE 50 & 125.

Tank. Cafe racer. Suitable for ACE 50 & 125.
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge

£144.00 £132.00
£110.00 ExVAT

This product is currently out of stock

Product Code: 3163

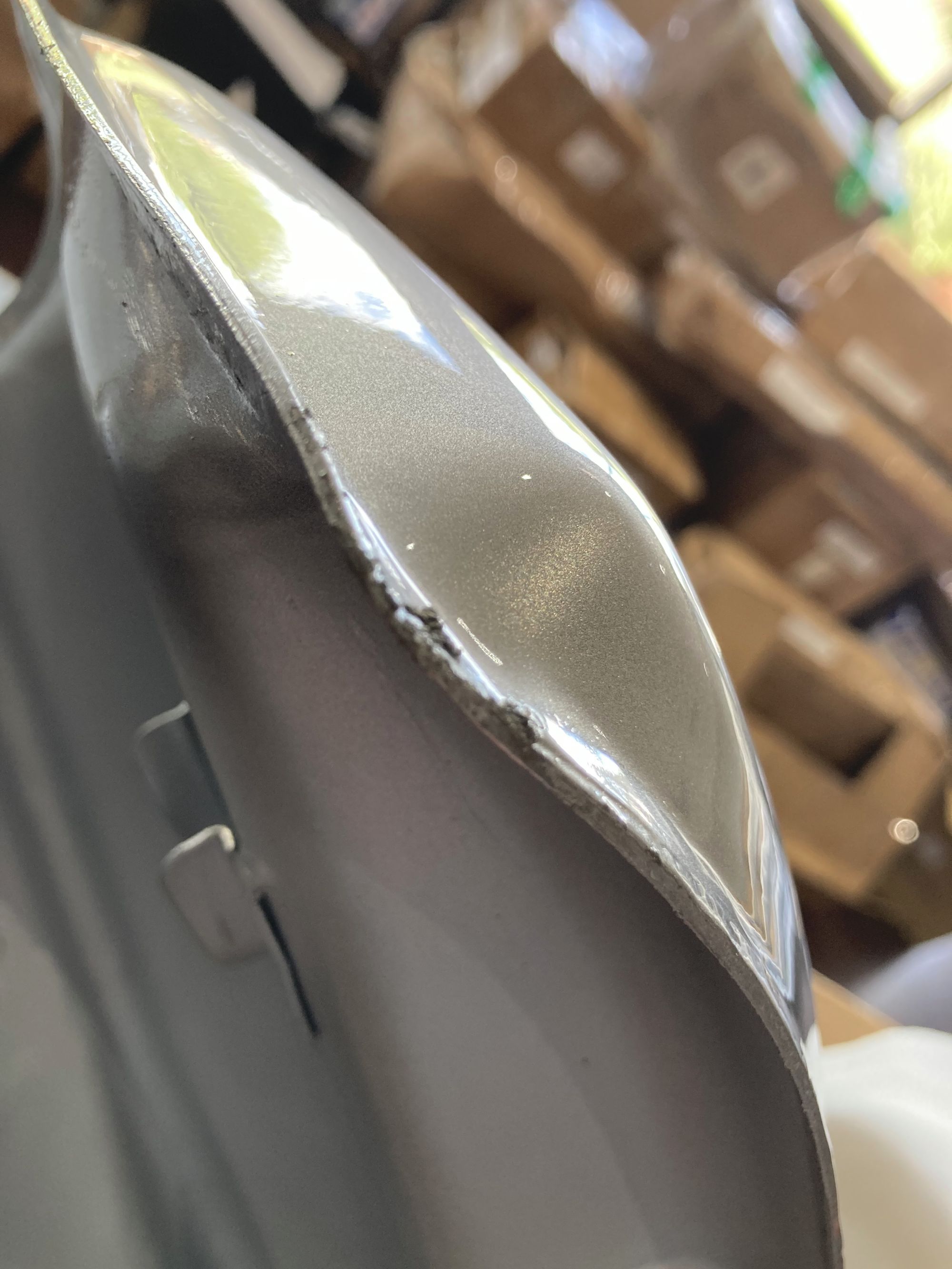

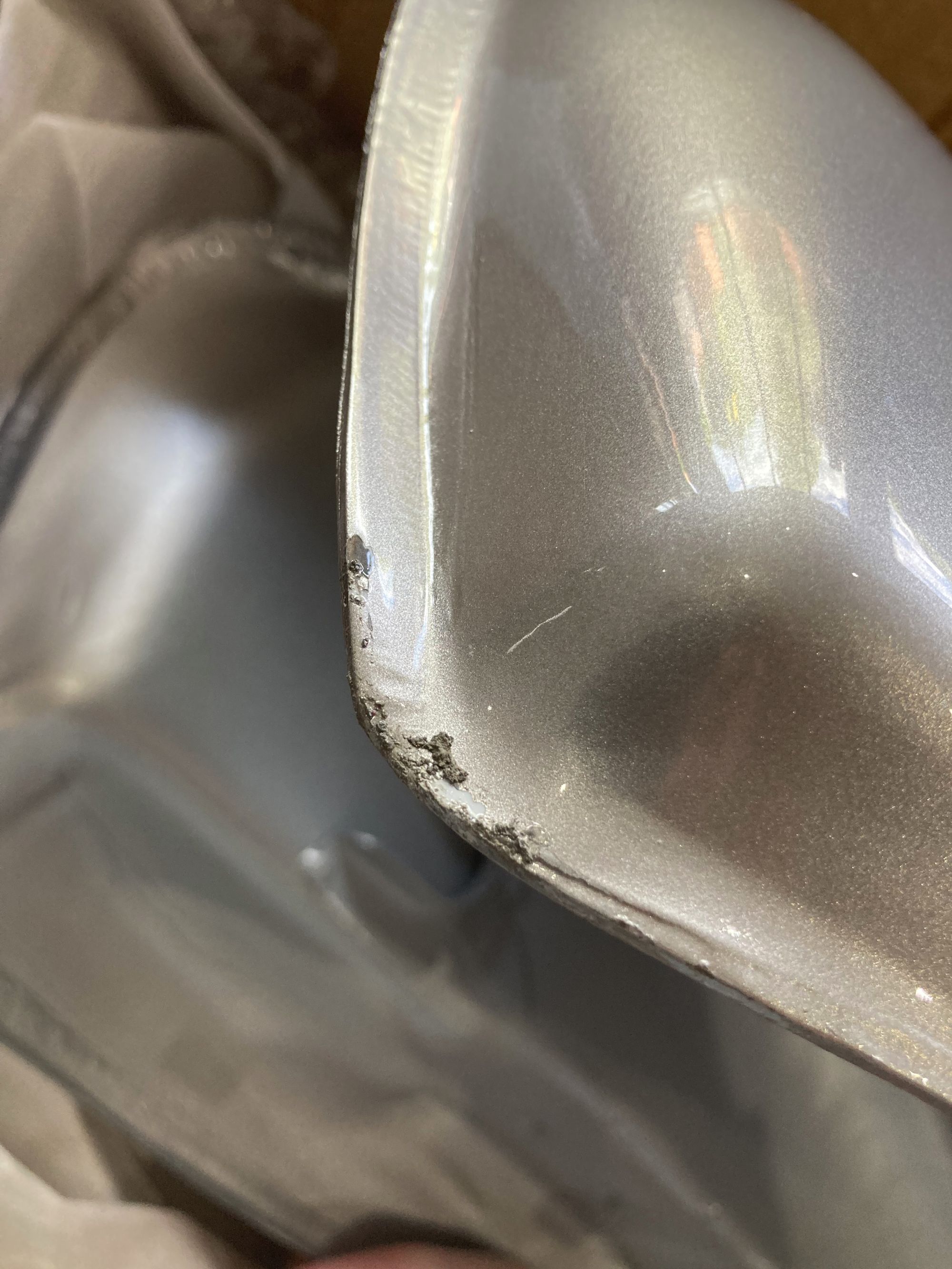

LAST ONE WITH SMALL COSMETIC DAMAGE AT FRONT CORNER (see separate pics)

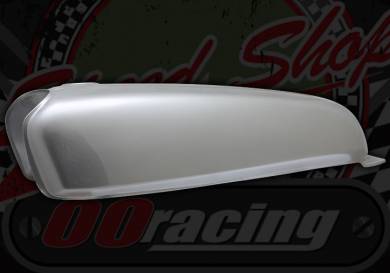

Tank. Cafe racer. Suitable for ACE 50 & 125

Steel construction painted in the stock silver

Similar in style to the Honda dream

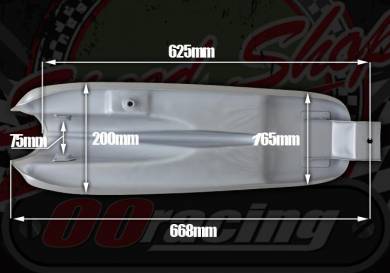

Specifications:

  • 200mm Width (Widest)
  • 165mm Width (Toward tail)
  • 160mm High (Heighest part)
  • 120mm High (Towards tail)
  • 80mm Gap. Between front mountst
  • 24mm front mount diameter
  • 555mm Distance between front and rear mount centres.
  • Fuel tap stub on left side 200mm from front
  • Petrol cap aperture



Uses a 16mm 1.5mm Pitch thread fuel tap not included



PLEASE NOTE

Finish not perfect, some have blemishes in paint

Under strap area not finished so well

Slight run out on view from back but covered when seat fitted

Reproduction aftermarket tank

ALL TANKS MUST BE RUBBER MOUNTED, NO MATTER OF BRAND, OR YOU WILL GET A SEAM FAILURE. WE SUPPLY RUBBER MOUNTING KITS FOR FRONT AND REAR, FOR THIS REASON. IF THE TANK IS IN DIRECT CONTACT WITH THE FRAME THIS WILL CAUSE A FAILURE THROUGH VIBRATION DAMAGE.





Product Code 3163
Condition New
Weight 15Kg
