Wiring loom CUB 90 electric start 12V CDI hi grade

Wiring loom CUB 90 electric start 12V CDI hi grade
  • Click to enlarge
  • Click to enlarge

£30.00 £24.98
£20.82 ExVAT


Product Code: 5699

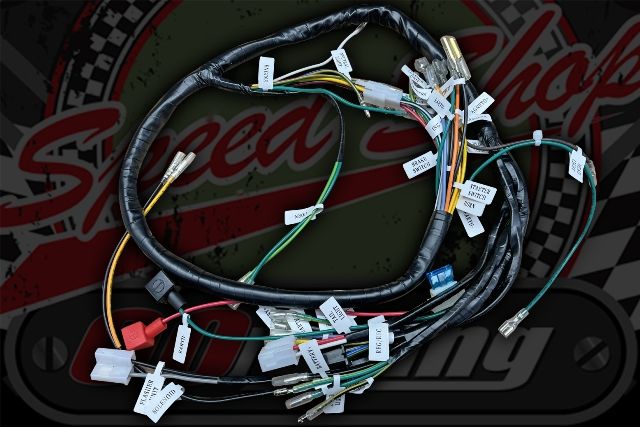

We've made a high grade wiring loom to fit the CUB 90 electric start and kick only 12V CDI

Electric star but you don’t have to use this part

Split phase charging

Ignition switch plug is at the area of the speedo

Ideal universal loom for custom builds

Its labelled so you get a basic idea what goes where and you can always call us for any info

CDI ignition

Flashers

Charge split phase can be converted to single phase easily

Brake switches front and rear

Head light high and low

Tail light

Horn

Right amount of connectors to still pass hole in frame. 130cm overall length approx

We have put the switch gear connectors on bullets so they pass through the frame ok

If you are looking for a direct replacement loom for your bike its best to order a genuine one..

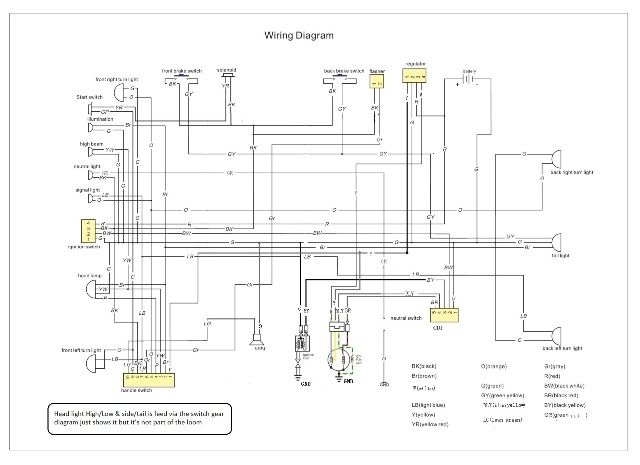

Includes A4 paper wiring diagram

Product Code 5699
Condition New
Weight 0.4Kg
