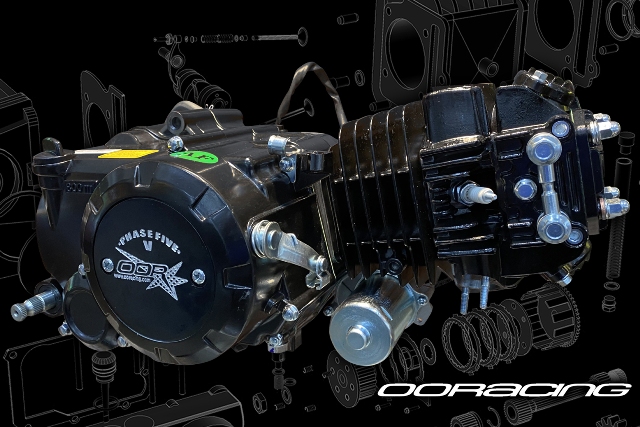

Engine. 140cc. Phase 5 Electric start Direct fit for 125cc chassis. PLUG & PLAY. MadAss

Engine. 140cc. Phase 5 Electric start Direct fit for 125cc chassis. PLUG & PLAY. MadAss
  • Click to enlarge
  • Click to enlarge

£571.20 £476.00 ExVAT

Product Code: 7504

Engine. 140cc. Phase 5. Electric start Direct fit for 125cc chassis. PLUG & PLAY. Suitable for MadAss

Here we have put together plug and play kit suitable for the Madass range of bikes.

Its  a complete kit with all you will need to convert your bike to a 14 bhp cruisers.



Specifications:

  • Cylinder:                           56mm. Alloy
  • Valve springs:                   Up rated
  • Clutch:                             3 Plate Primary clutch
  • Valves:                             27mm inlet, 23mm exhaust
  • Bore * Stroke:                   56mm * 57mm
  • 10mm Engine bolt holes



Supplied in this kit



  • Spark plug NGK C7-HSA
  • Manifold heat spacer and PE 26mm Style carb
  • Force 46mm air filter
  • Running in and service info is supplied with this kit
  • 3 Phase SS3 Gen Uses orignal REG REC
  • 4 pin CDI
  • Uses OE clutch cable
  • kick start
  • Gear change folding tip type



PLEASE NOTE:

These performance engines must not be run on the stock exhausts systems as they will choke the system and over heat.

Product Code 7504
Condition New
Weight 35Kg
