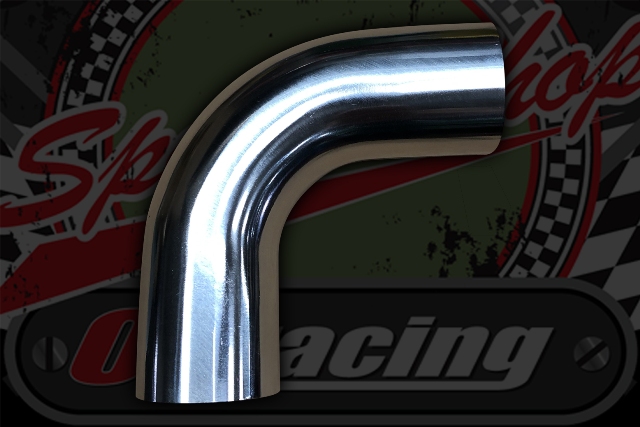

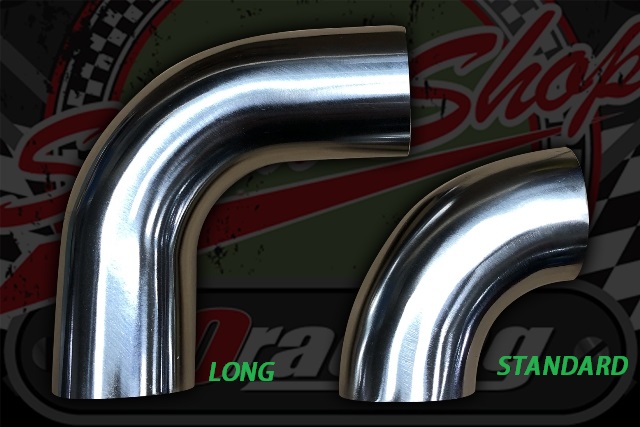

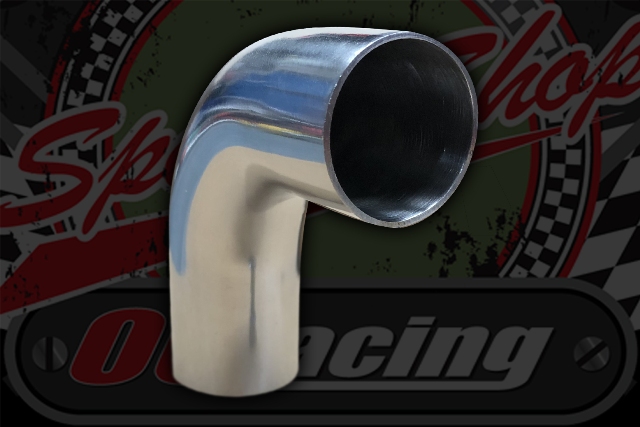

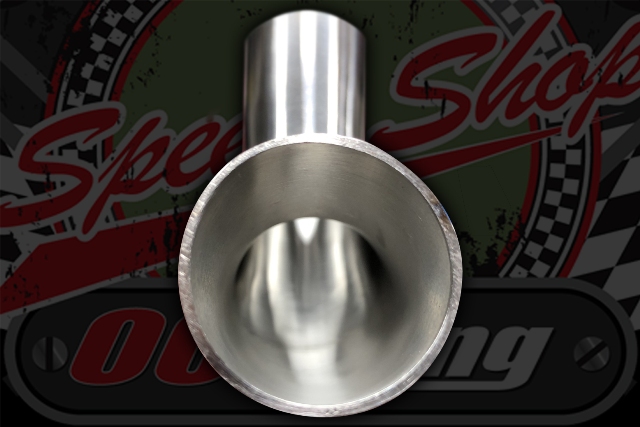

Stainless 304 exhaust/inlet pipe bends 90 degree Long series Sizes outer diameter from 19mm to 76mm

Stainless 304 exhaust/inlet pipe bends 90 degree Sizes from 19mm to 76mm

We do other bends, fittings and straight pipe in our main ooracing store (stainless bends)

We stock bends in degrees:

• 30°
• 45°
• 60°
• 90°
• 180°

T Pieces

Y Pieces

All sizes are OD (outside diameter)

45mm have a slightly rougher cut on one side

Price per bend

Wall thickness 1.5mm up to 51mm and 2mm over.

304 grade is nice to weld less brittle than the 316 grade.

There a nice tight bend with a clean cut so you can but weld close connections to get really tight turns

We decided to stock these really useful polished 304 grade bends for custom exhausts or inlets, and water pipe systems.

You can simply use insulation tap to hold your bends to the straight pipe to mock up your system, holds well so you can take it to your local Tig welder and get him or her to cut a 10mm strip out your tape to tack weld in 2 places before removing all the tape.

Sizes we stock below

19mm 3/4"

22mm 7/8"

25mm 1”

28mm 1 1/8”

32mm 1 ¼”

34mm 1 11/32”

38mm 1 ½”

40mm 1 37/64”

42mm 1 21/32”

45mm 1 ¾”

48mm 1 7/8”

51mm 2”

54mm 2 1/8"

57mm 2 1/4"

60mm 2 23/64"

63mm 2 31/64"

76mm 2 63/64"
