Carb service kit PC PZ16 20 22 type

Carb service kit PC PZ16 20 22 type
  • Click to enlarge

£9.59 £7.99 ExVAT

Product Code: 8955

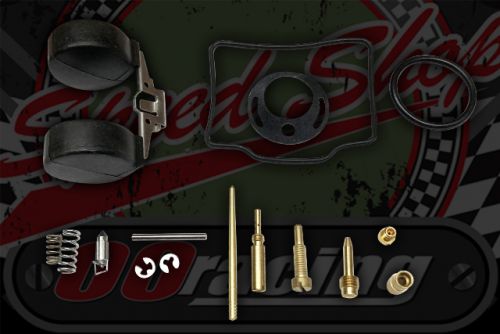

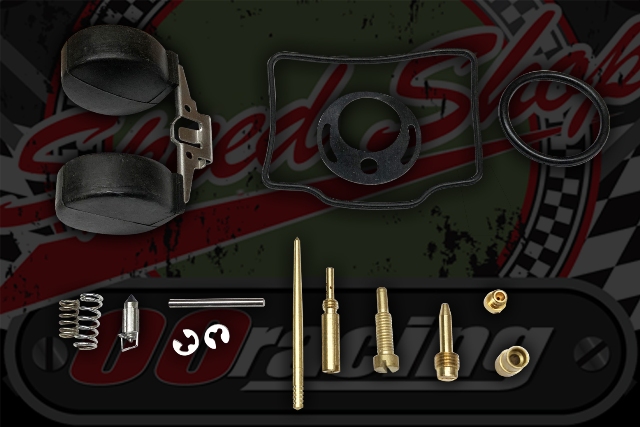

Carb repair kit PZ16 20 22 type

1 X Float plastic type

1 X Float needle

1 X float pivot pin

1 X Float gasket

1 X Intake seal ORing

1 X Slide top flat seal

1 X Main jet 75 .75mm

1 X Pilot jet 35 M5 .80 pitch

1 X needle jet top

1 X Needle Stock fat taper un marked

1 X Needle Cir clip

1 X Needle clip retainer

1 X Pilot screw and spring M6 x .8 pitch

1 X Idle screw and Spring M4 x .7 pitch

Product Code 8955
Condition New
Weight 0.1Kg
