Cylinder KITS ACE APE

Cylinder KITS ACE APE
  • Click to enlarge
  • Click to enlarge

£45.60 £38.00 ExVAT


Product Code: 9355

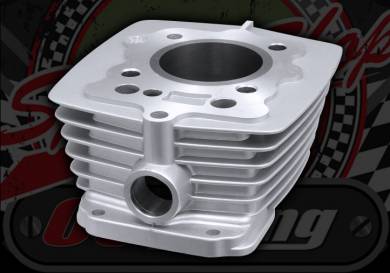

Cylinder ACE APE " Standard 56.5mm"  62mm Or 63.5mm


56.5mm = 125cc Standard, removed from new engines

62mm = 150cc Big bore

63.5mm = 196cc "will only fit the 200cc vesion engine" Longer cylinder or for custom build Cylinder length face to face 76mm overall length 104mm





Specifications for pistons:

56.5mm piston specifications:

  • A = 56.6mm
  • B = 55.0mm
  • C = 15.0mm
  • D = 26.5mm
  • E = 23.0mm
  • F = 47.0mm



62mm piston specifications:

  • A = 62.0mm
  • B = 51.5mm
  • C = 15.0mm
  • D = 26.5mm
  • E = 24.0mm
  • F = 50.5mm



63.5mm piston specifications:

  • A = 63.5mm
  • B = 45.5mm
  • C = 15.0mm
  • D = 22.5mm
  • E = 22.5mm
  • F = 47.5mm



Product Code 9355
Condition New
Weight 2Kg
