Gear position indicator 12V N-1-2-3-4-5-6

Gear position indicator 12V N-1-2-3-4-5-6
  • Click to enlarge

£19.99 £14.99
£12.49 ExVAT

Product Code: 5714

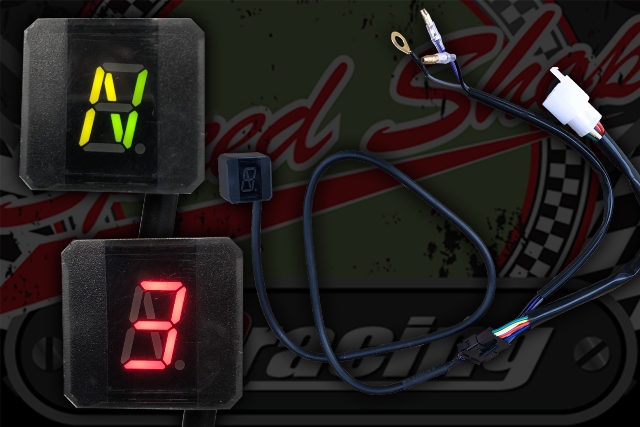

Gear position indicator 12V  N-1-2-3-4-5-6 can be used on other gear layouts by swapping wires around.

This is a universal unit CNC case splash proof.

Dimensions

Width 25mm

Height 24mm

Depth 16mm

Cable length 800mm

Wiring

Grey ring = Neg

Purple Male bullet = + Switched input

Blue = Neutral N Green/yellow display

Green = 1 Red display for all gears

Yellow = 2

White = 3

Red = 4

Orange = 5

Black = 6

This unit can be use with any bike as long as it has a gear switch with all the gears in it, or can be just used as a neutral light N.

Don't unplug the black multi pin conector pins can come out.

If your bike only has the neutral switch for neutral, its worth finding out of there is an aftermarket one that has all the positions in it or from another model.

Works by earthling out the switch to make the circuit.

Product Code 5714
Condition New
Weight 0.1Kg
