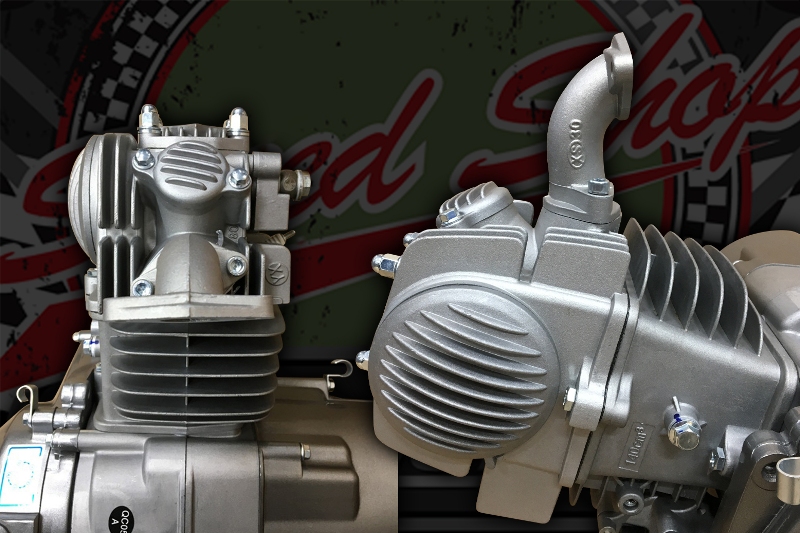

Inlet manifold, 21mm bore Straight back, overall height 82mm XS-30

Inlet manifold, 21mm bore Straight back, overall height 82mm XS-30
  • Click to enlarge

£9.98 £8.32 ExVAT

Product Code: 6657

Inlet manifold, 21mm bore Straight back, overall height 82mm  XS-30

Tips forwards 5 degrees if held on the flat, most engines tip up 5 degrees

Manifold to head flange bolt centres 45mm M6 hole

Manifold to carburettor flange 48mm bolt centres M6 holes, Holes sit above centre line “Honda style”

Supplied with heat spacer and gaskets to suit, please note spacer and gasket sizes don’t always match 100% to manifold bore size.

Cast alloy

Product Code 6657
Condition New
Weight 0.2Kg
