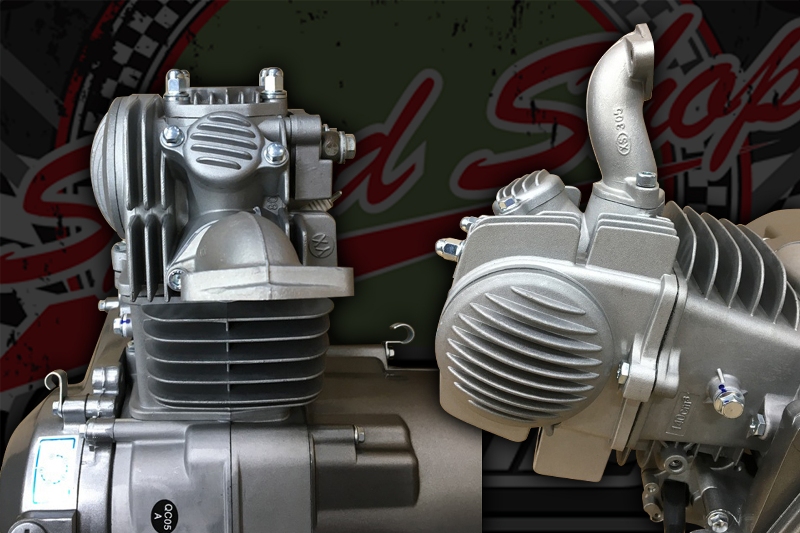

Inlet manifold, 22mm bore straight back staggered over, overall height 85mm XS-305
Tips forwards 5 degrees if held on the flat, most engines tip up 5 degrees
Manifold to head flange bolt centres 45mm M6 hole
Manifold to carburettor flange 48mm bolt centres M6 holes, Holes sit above centre line “Honda style”
Supplied with heat spacer and gaskets to suit, please note spacer and gasket sizes don’t always match 100% to manifold bore size.
Cast alloy
