Custom Build your own CUB loom

Custom Build your own CUB loom
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge

£54.00 £45.00 ExVAT


Product Code: 5773

Ok so all the looms option in this listing are for the single phase or 3 phase charging systems, will not work with split phase “1 YELLOW 1 WHITE” type gens.

The looms have Electric start wired in them but you don’t have to use that part.

Please note starter solenoid is mounted behind leg shield on down tube.

Some frames need to be modified where the loom passes through the frame due to the side of the multi pin plugs

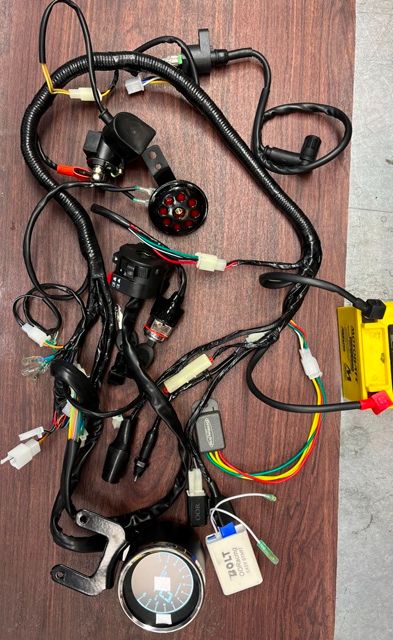

Photo shows the type of products you will get if chosen.

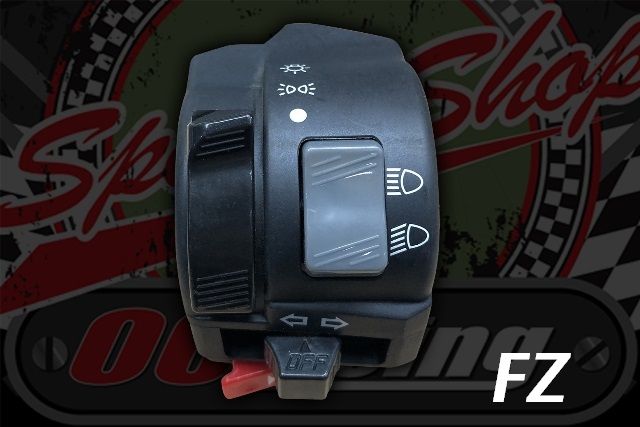

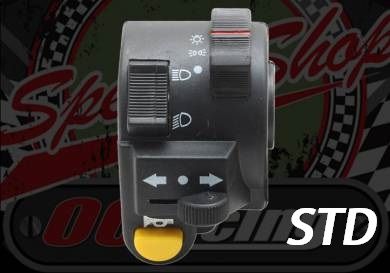

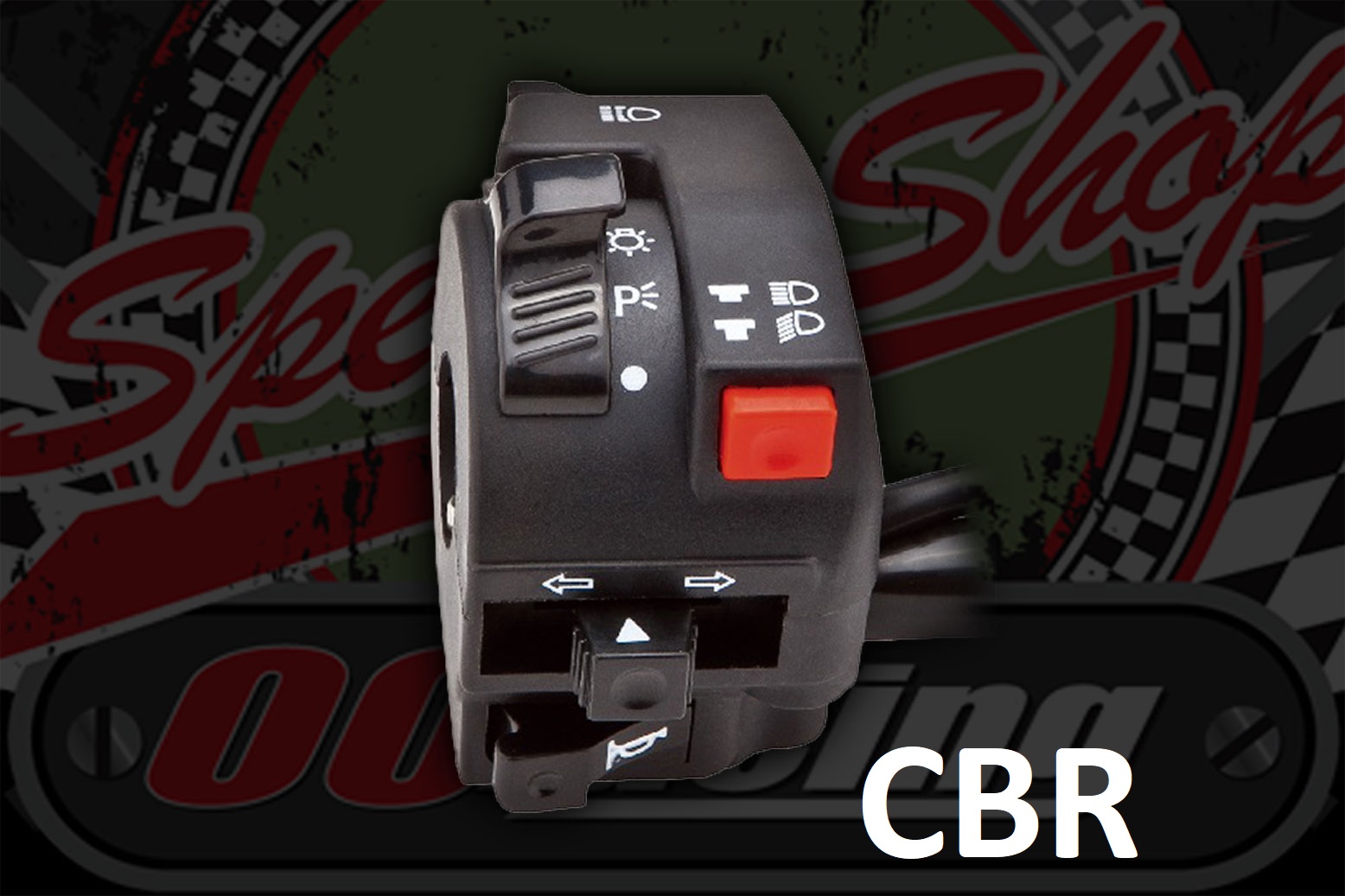

Switch gears all in one on left side

Lights ON/PILOT/MAIN  HIGH/LOW BEAM

TURN

HORN

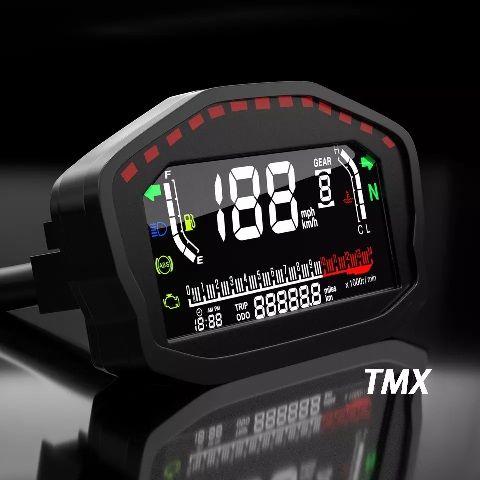

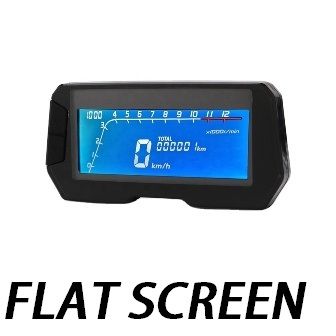

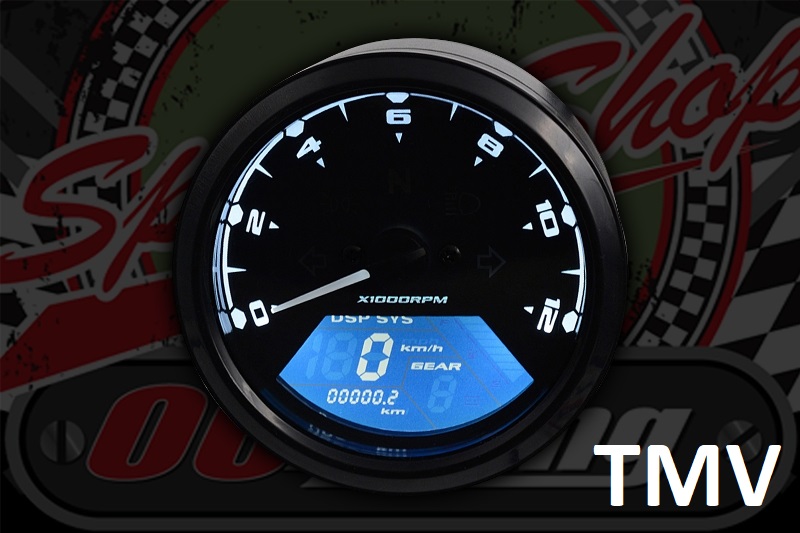

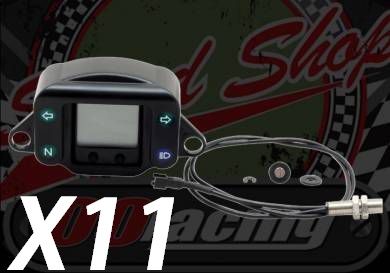

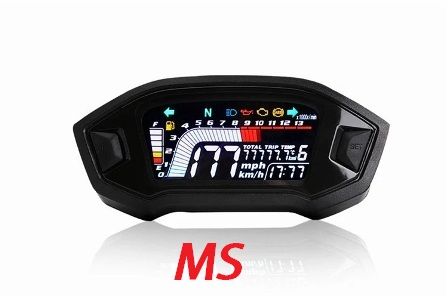

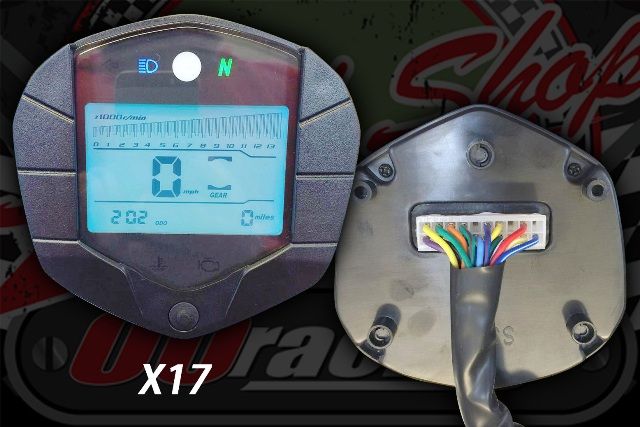

Clocks:



The kit is made so all you have to do is fit the stator to the engine and fit the components.

Everything that will come in the box will already be plugged in and working.

All you need to complete

  • 4 x Flasher
  • Rear light
  • Head light
  • Battery 12V







Product Code 5773
Condition New
Weight 5Kg
