Loom Build your own electric system to put your bike on the road

Build your own electric system to put your bike on the road universal.

The kit starts off with our High grade wiring loom long enough for Monkey bikes and pit bikes

Overall loom length 110cm

Photo shows the type of products you will get if chosen.

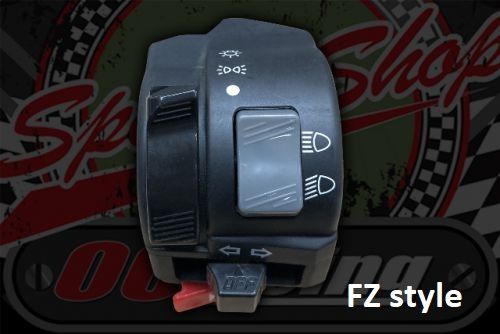

Switchgears:

• Standard switchgear is the one in the main image
• CBR type switchgear is in the separate image

Clocks:

• X11 Clock Module is in the main picture

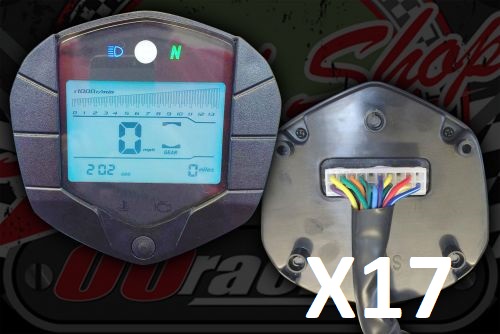

• X17 Clock module is in seperate image

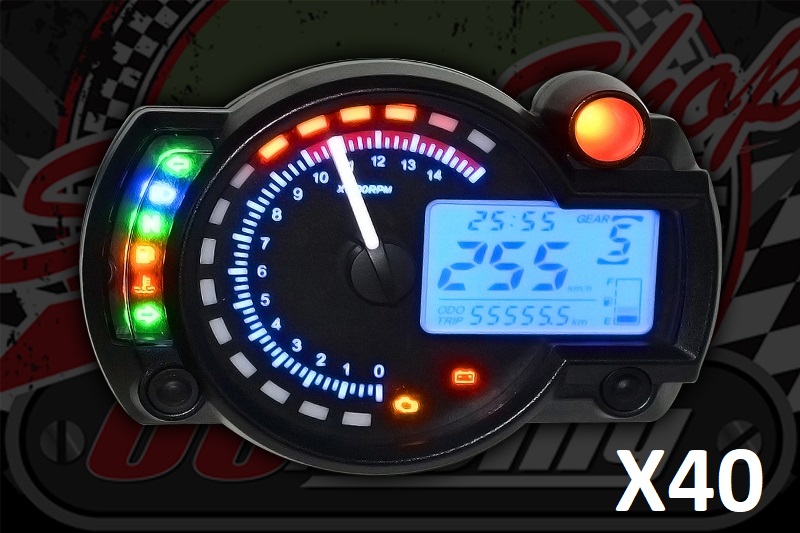

• X40 Clock Speedo, Rev's, warning lights, Gear position N-1-2-3-4

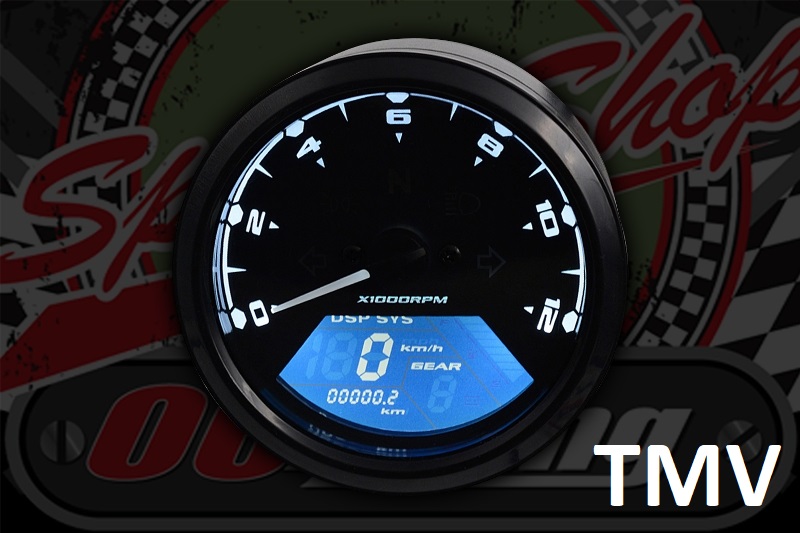

• TMV Clock Speedo, Rev's, warning lights, Gear position N-1-2-3-4

The kit is made so all you have to do is fit the stator to the engine and fit the components.

Everything that will come in the box will already be plugged in and working.

All you need to complete

• 4 x Flasher
• Rear light
• Head light
• Battery 12V

If you are using your own gen make sure its single phase and not split phase as split phase will not work with this loom

fits common pit bike and monkey bike layouts.

Will not fit chaly ST's or DAX layouts.

Wiring information:

• Wiring diagram
• Pin diagram
• Wiring document (explains colours and use)

Instructions and specifications:

• X11 Wiring instructions
• X11 Instructions (external link to drop box)
• X17 Wiring instructions
• X17 Instructions (external link to drop box)

Make sure you have free play around head stock area so that when you turn the steering it won’t pull on the loom, this can result in it pulling wires out of connections
