90cc. Light weight aluminium Semi auto close ratio 3 speed

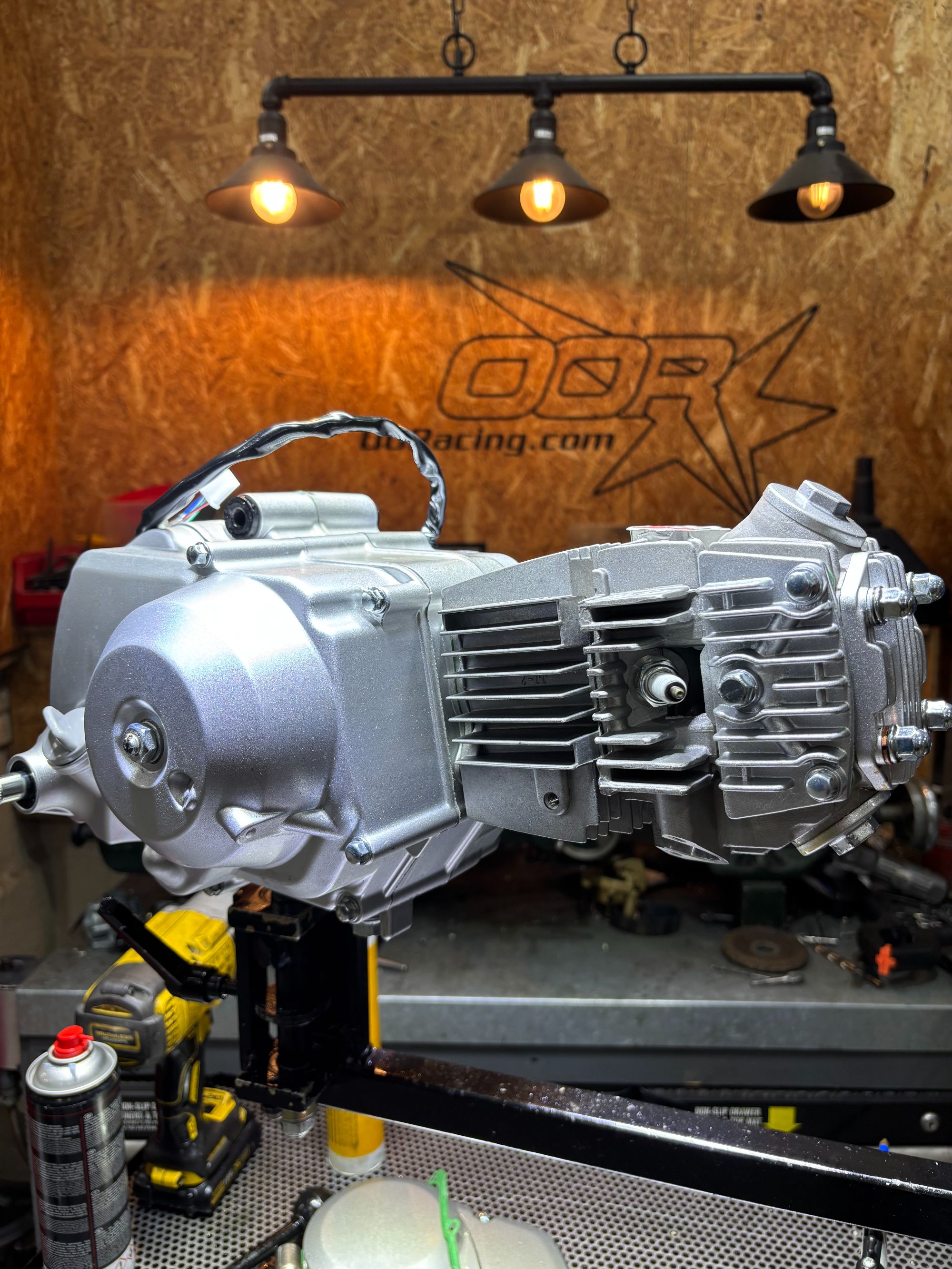

This is our full alloy engine plop enduro

This we have created by using a 47mm 70cc shorter cylinder with a 6mm spacer between the cylinder and block. so will have 49cc marked on it but its an 85cc.

Now with rubber engine mounts, makes a huge difference.

Awesome engine that packs a punch, fully set up by us.

Specs

Engine. 3 speed close ratio. Semi automatic. locked out 1st

Gears N-1-2-3
Alloy cylinder 47mm

High compression piston

E22 head gas flowed

1mm extra lift camshaft

40 psi valve springs with 1.9mm spacer shims

Dialed in cam shaft

Brass cam chain tensioner

6 Friction plate clutch up grade

Pan magnet in clutch cover

VMR118 race ignition kit

Whats in the kit

1 x Engine

1 x CDI

1 x Coil

1 x Ignition loom

1 x Kill switch

1 x NGK spark plug

1 x Kick start

1 x Gear change

1 x Gen cover gasket

1 x Exhaust gasket and nut kit

1 x Breather hose

1 x Carb 19mm choke 15mm slide plop spec with inter grated fuel tap 2 or single feed. "uses original c90 mainfold"

1 x Service instructions

Single phase 2 Yellow wires D/C charging Super spin option

RACE no light has the Full VMR118

Engines are supplied with wiring instructions
Service info

• Engine oil:            10W/40 Mineral Oil
• Capacity approx: 600ml
• Valve clearance:  0.10mm inlet 0.12mm exhaust
