110cc. 12V CUB conversion semi auto 4 speed

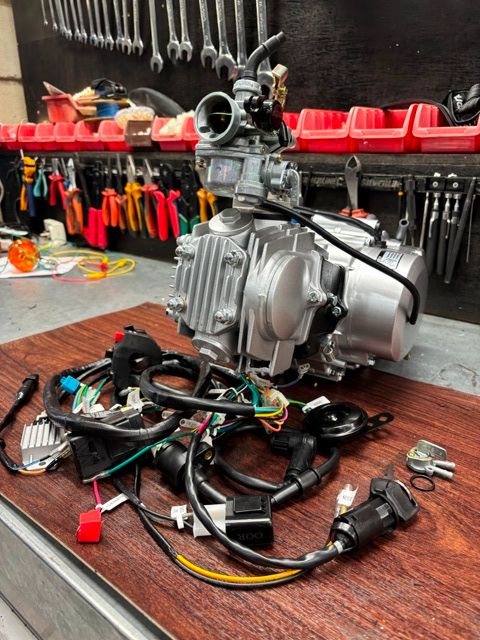

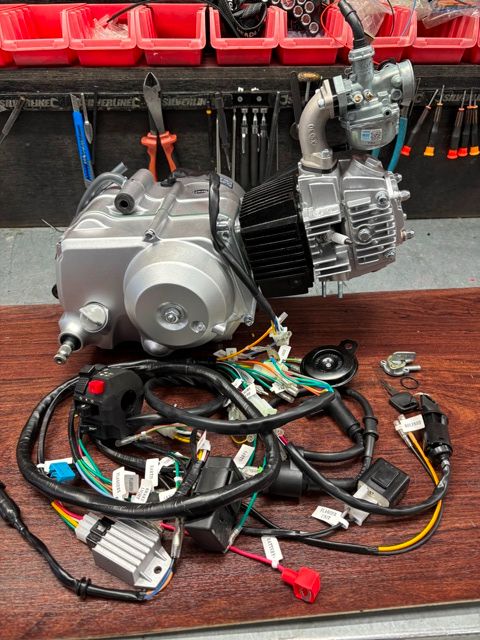

We have built you up a full package with wiring kit to bring your dated wiring up to date

Awesome engine that packs a punch, fully set up by us

Now with rubber engine mounts, makes a huge difference

Perfect to fit the C50's C70's & 90's with 155mm engine mounts, some 6v's had 180mm, that's the distance between the engine bolt centers

ENGINE Specs

1. 110cc Semi auto YX
2. Semi automatic.
3. Gears 1-N-2-3-4
4. Semi auto
5. Ignition type CDI  5 pin
6. Split Phase Yellow/white "Stock C90 type"

Engine supplied with

1. Kick start
2. Gear change
3. NGK spark plug
4. 15T 420 sprocket and retainer
5. Inlet manifold
6. Carb 19mm with over size slide "pre jetted" for free flowing exhaust"
7. Exhaust gasket
8. Gen cover gasket
9. Service information

Wiring kit

1. OORacing split phase wiring loom
2. Left hand all in one CBR handle bar switch
3. 12V horn
4. 12V coil
5. 12V CDI unit
6. 12V adjustable flasher unit
7. 12V Reg/rec split phase
8. In line TRIP fuse
9. Ignition switch with 2 keys
10. Brake light switch rear
11. All of the above is pre wire together as a kit

Service info

• Engine oil:            10W/40 Mineral Oil
• Capacity approx: 600ml
• Valve clearance:  0.10mm inlet 0.12mm exhaust
