26mm PE style Power jet Carb Huge upgrade over the MOLKT

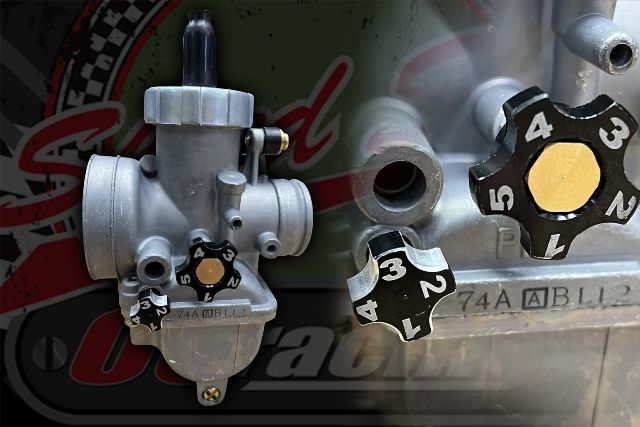

Carb 26mm PE style OOR2  Better Casting Now with CNC idle and pilot screw

If you want a clear float bowl see drop down

For CNC direct pull up choke see drop down

New option for force air filter

Perfect for the below engines

Z110HO, Z125HO, Z155

YX 140, 160 170 2V & 4V

Custom made needle reduces fuel passing under decell that causes a misfire on re opening of the throttle.

We now prefer this carb over the VM26 for low to mid range riding

Base Jetted to run with above CC, we will add other jetting as soon as we have dynode them on other CC’s

Choice to add carb rubber adapter with uprated zebra clip, for carb rubber listing on its own please see product code 3038

Use super unleaded only DO NOT USE E10 RUBBERS WILL FAIL

Brass chrome slide nice clearance

46mm filter stub fitting use the Force air filters part number 8020

Manifold stub fitting 33mm

Carb length 83mm overall

Height 145mm inc rubber top

6mm fuel hose fitting push fit

Uses jets below

Main part number 4190

Pilot part number 7357

Comes with main 112 Pilot 38

Needle unmarked custom made

Slide cut out 3.0

Idle screws are a bit lose with these carbs you can pack out spring with an extra washer if you find its moving with vibrations.

A little over view on jetting

So out of 10 YX140/150 engines we have tested on there is a small variation on main jet.

Common is the supplied main 112 this actually measures 115.

Now due to the differences in exhausts it dose effect what main you need.

So far the range we have used to set up the above engines are 107.5 110 115

So if you have a miss around 7000 rpm its rich so you will need to drop the main down

Needle clip position we run Mid  or  one from top weaker

Test on YX 140 with Z40 & Stock cam

38 pilot

112 =115 main

Float height 21mm

Pilot screw ½ turn out

Needle clip one down from top

The above set up works perfectly all over the rev range on and off load, only slightly rich with very light throttle opening with no load.

Tip

When removing the float bowel make sure the carb is fully drained ad as dry as you can get it, as when the oxygen hits the rubber gasket when it’s wet with fuel it’s going to expand.

It will shrink back if you dry it off a put it in the freezer for a couple of hours!

Specifications. Rubber:

• 28.5mm Throat
• 33mm Aperture for Carb output
• 48mm Fixing holes center to center
• M6 Threaded

Carb rubber option see below.

We have removed the rubber seal from this kit and now supply the kit with a gasket instead. This improves reliability of product and helps avoid distortion, Use with RTV and allow to set before using. DO NOT USE O RING AS THEY WILL DISTORT

You only need to tighten so the carb doesn’t turn, any tighter you will split the rubber.
