Carb service kit PB19 type Round bowl C90

Carb service kit PB19 type Round bowl C90
  • Click to enlarge

£11.20 £9.33 ExVAT

Product Code: 8954

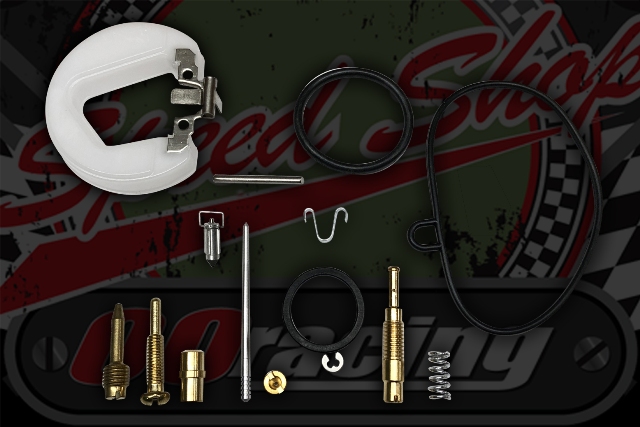

Carb repair kit PB19 type all 15 mm slide modles in the 8J range

Load of C90’s have done a number of road miles and carb parts start getting worn, had loads of carbs we just can’t jetted correctly due to the top part needle jet has worn oval. This kit sorts out the issues.

1 X Float plastic type 43mm O/D

1 X Float needle

1 X float pivot pin

1 X Float gasket

1 X Intake seal ORing

1 X Slide top flat seal

1 X Main jet 80 .80mm

1 X Pilot jet 35 M5 .80 pitch

1 X needle jet top

1 X Needle Stock c90 taper un marked

1 X Needle Cir clip

1 X Needle clip retainer

1 X Pilot screw and spring M6 x .8 pitch

1 X Idle screw and Spring M4 x .7 pitch

Product Code8954
