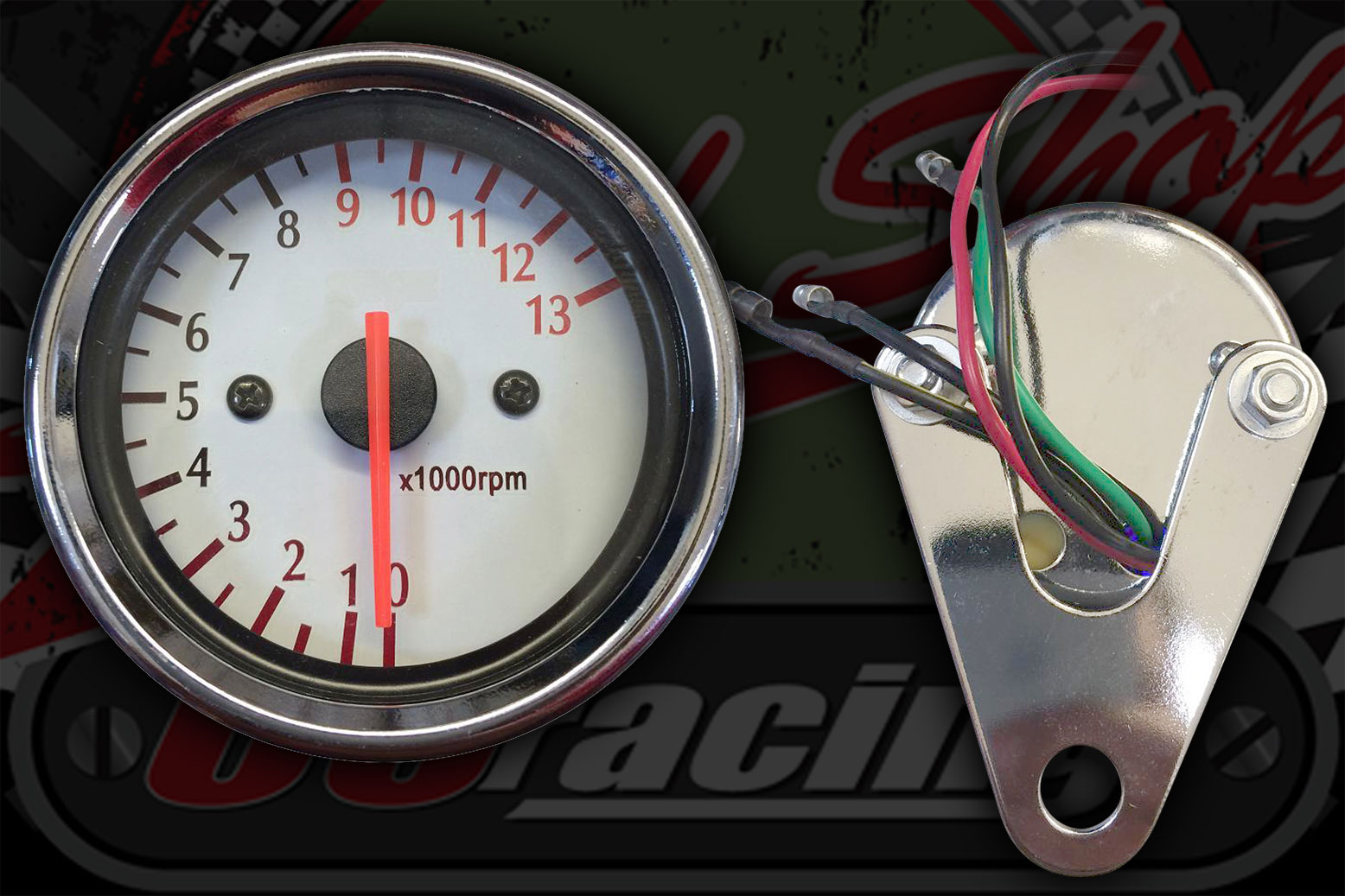

Chrome bezel rev counter
12V with back light
Can be just connected to the Blue/white from CDI
Specifications:
- 60mm Diameter
- 55mm lenght body only
- 45mm centers fixing studs
- M5 Fixing stud thread
- 52mm mounting bracket hole
- 10mm mounting hole on bracket
Wiring. Long:
- Red - Positive backlight
- Black - Negative backlight
Wiring. Short:
- Black - Positive
- Green - Negative
- Black/Yellow - RPM Signal "don't connect to the coil feed'
- Some CDI's units will give a back feed signal so the rev counter may over read over 8000 rpm
