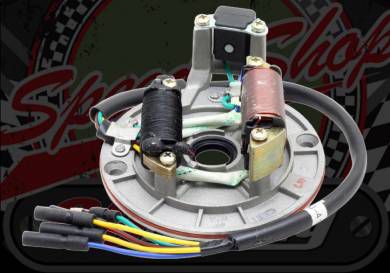

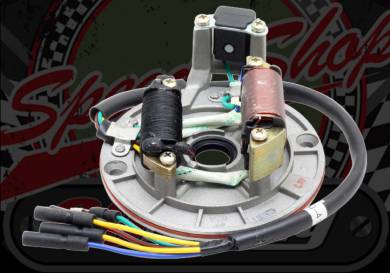

Gen. Stator plate. Ignition and lighting coils Big flywheel type

Gen. Stator plate. Ignition and lighting coils Big flywheel type
  • Click to enlarge

£19.99 £10.79
£8.99 ExVAT

Product Code: 4301

Stator back plate ignition and single or split phase DC lighting coils. 40W

Standard 12V

12V crank taper 16/19mm

Wires

2 x Yellow single phase

or

1 x White & 1 x Yellow split phase

1 x Blue/white Trigger

1 x Green Earth neg

1 x Black/red Sorce coil

With seal and outer oring, pre tested

For use with the large Gold 1kg flywheels with 86mm inner magnet diameter.

Works with round or long triggers

Lighting coil stands 40mm off the back plate

All stators are pre tested before dispatch,

New old stock marks in coatings on coils hence price is below cost



Product Code 4301
Condition New
Weight 1Kg
