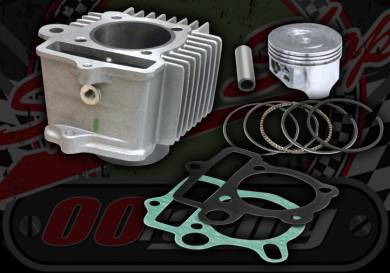

Cylinder kit 52mm Alloy 88cc Flat top piston 12V engines
1 X Alloy cylinder steel liner 52mm bore skirt 53.8mm depth of skirt 22mm Block face to head face 63.2mm
1 X Piston kit 52mm 13 pin complete with rings pin and clips Pin top to deck 10.7mm
1 X Steel head gasket .3mm 52mm
1 x Base gasket
For use with c50/70/90 stud patterns
Works with stock 50 heads and e22 or heads with 23mm and 21mm valves
Advice
Make sure the jetting is correct and a free flowing exhaust is used as stock 50cc systems will build up too much cylinder heat resulting in failures.
