Cylinder kit 52mm Alloy 88cc High comp kit

Cylinder kit 52mm Alloy 88cc High comp kit
  • Click to enlarge

£119.99 £99.99 ExVAT

Product Code: 6629

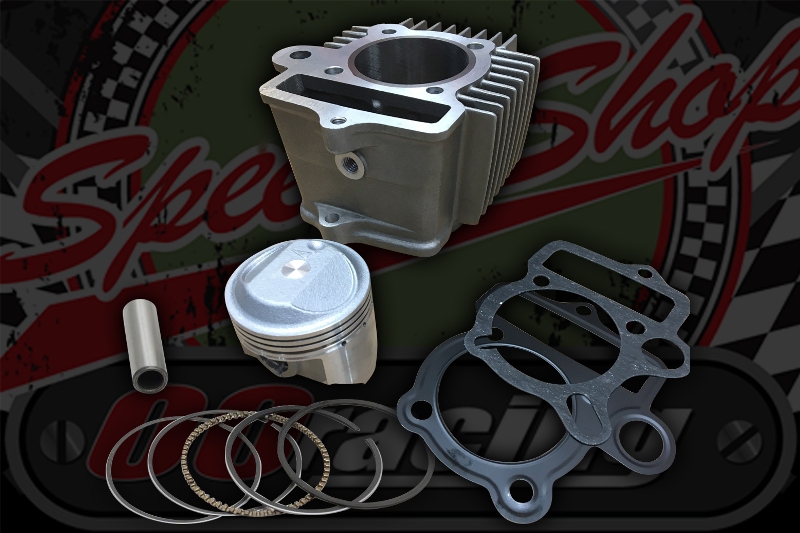

Cylinder kit 52mm Alloy 88cc High comp kit 12V engines
1 X Alloy cylinder steel liner 52mm bore skirt 53.8mm depth of skirt 22mm Block face to head face 63.2mm
1 X Steel head gasket .3mm 52mm
1 x Base gasket

1 X Piston 52mm Bore size

13mm pin

Overall height 50.2mm

Deck height from pin centre 19.5mm

Crown height from pin centre 26.1mm

O/D around base of crown 45.5mm

Comes with Rings, Pin, Cir clips


For use with c50/70/90 stud patterns

Please note will not fit with E22 heads

Fits with the big valve large hemi Chaly 25mm inlet valve heads and Japanese race heads.

Make sure you have the below correct so the cylinder won’t over heat.

1 Correct ignition timing ith advance up to 38 degrees.

2 Jetting is correct

3 oil cooler

Failure to do the above will cause the liner to drop.

Product Code 6629
Condition New
Weight 2.1Kg
