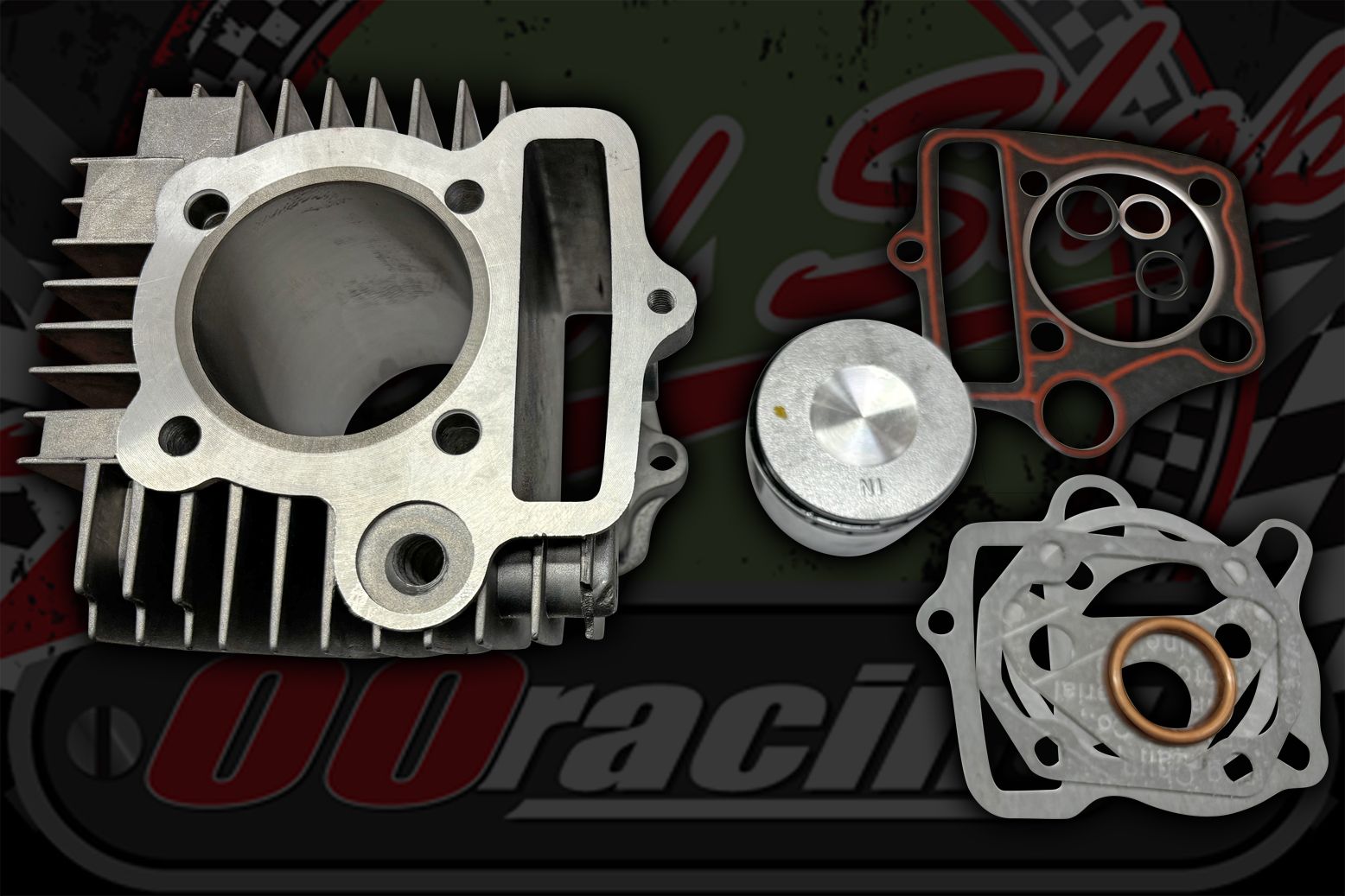

Cylinder & Piston kit conversion to aluminium 52.4mm 12v 108/110cc
Far better for heat displacement and power.
Save 1.5Kg in weight over the cast iron cylinder
Cast iron 2.45kg to 2.5kg
Alloy 972 grams
Marked with 108cc
1 X 52.4mm cylinder aluminium
1 X piston kit, rings, pin, cir clips 13mm pin
1 X top set gaskets 1mm head gasket
Standard found on most primary clutched engines 108/110cc.
Cylinder length overall 95mm
Length face to face 69mm
Skirt size 55.5mm O/D x 26mm long
Bore 52.4mm
