Front end disc brake Quad ATV Buggy 50cc to 250cc weight

Front end disc brake Quad ATV Buggy 50cc to 250cc weight
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge

£144.00 £120.00 ExVAT

Product Code: 5620

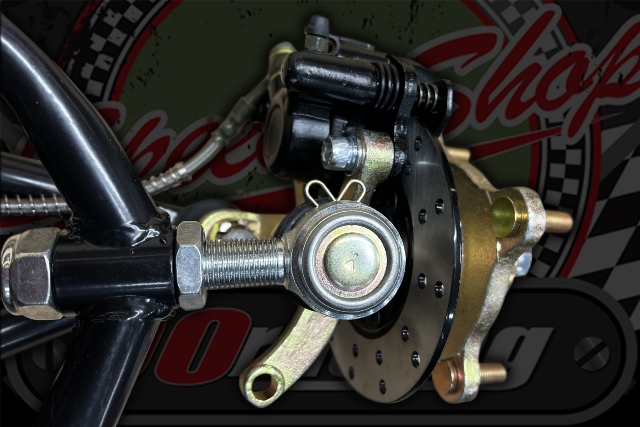

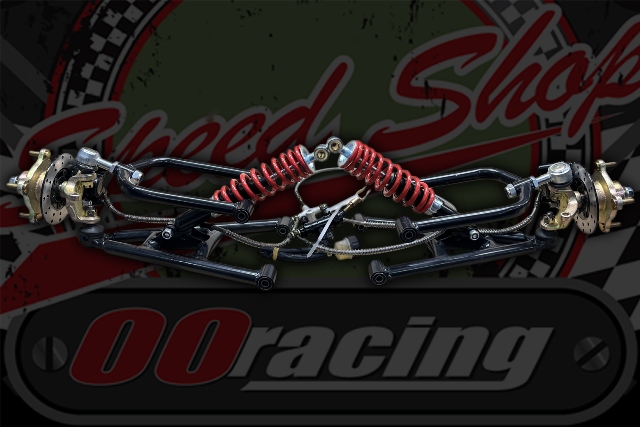

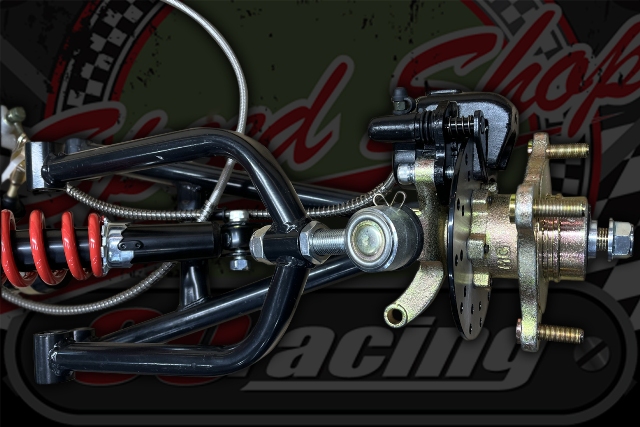

Front end disc brake Quad ATV Buggy 50cc to 250cc weight

Almost complete coil over front end for custom project builds.

In the kit

2 x Brake disc 130mm

2 x Lower wish bones with integral ball joint, 330mm pivot to ball joint, M10 rubber bush steel sleeve, Outer width 225mm  inner width 150mm, choice of shock mounting holes 30mm apart.

2 x Upper wish bones with adjustable camber 250mm without ball joint M10 rubber bushing steel sleeve, overall width outer 195mm and inner 115mm.

2 x handed stub axles with ball joint type steering arms

2 x Hubs twin bearings with seals  4 x M10 studs 1.25 pitch 110mm PCD, 89mm hole recess location

2 x Handed calliper with braded hoses, single pot.

1 x Foot brake master cylinder can be used with front handle bar master cylinder, T piece joiner.

2 x Oil filled shocks 305mm eye to eye

Steel wish bones painted but with marks as it just protection paint.

These are ideal for project builds.

Product Code 5620
Condition New
Weight 13Kg
