Inlet manifold, 29mm taper to 26mm bore. KLX port angle FA7H, overall height 85mm site 10 degrees off to left from straight back..

Inlet manifold, 29mm taper to 26mm bore. KLX port angle FA7H, overall height 85mm site 10 degrees off to left from straight back..
  • Click to enlarge

£9.98 £8.32 ExVAT

Product Code: 0064

Inlet manifold, 29mm taper to 26mm bore. KLX port angle FA7H, overall height 85mm site 10 degrees off to left from straight back..

Cast alloy

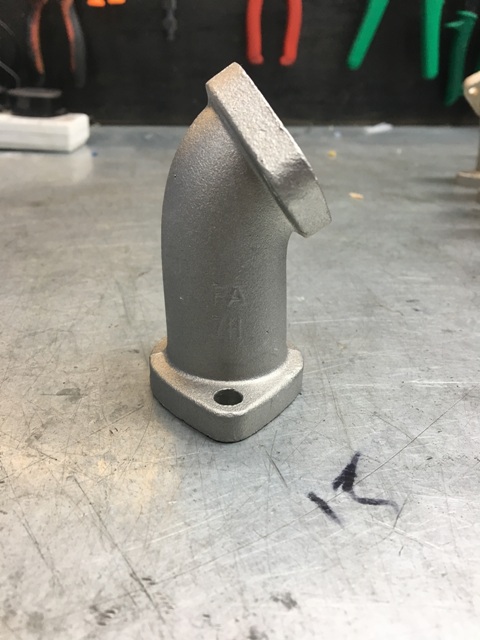

See photos for off set

Manifold to head flange bolt centres 45mm M6 hole

Manifold to carburettor flange 48mm bolt centres M6 holes, Holes sit above centre line “Honda style”

Supplied with heat spacer and gaskets to suit, please note spacer and gasket sizes don’t always match 100% to manifold bore size.

Product Code 0064
Condition New
Weight 0.2Kg
