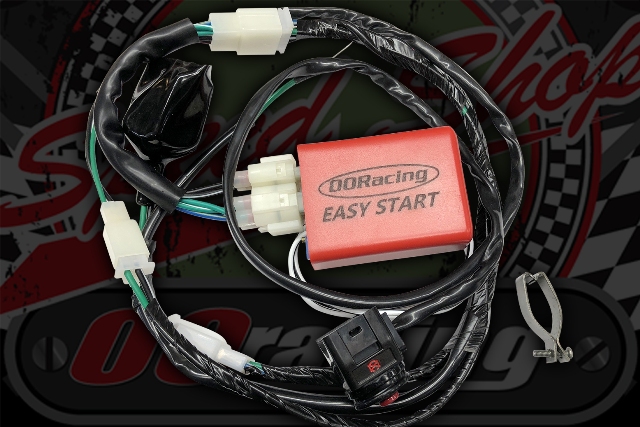

This is OORacings mini loom, coil and CDI Bolt Easy start Performance 5 pin CDI.
Can be also used to check or bench test engines
Comes with new white BOLT CDI now.
This cuts down on wiring and faults for race bikes with
Included:
- Mini loom high cooper content "comes with 3 pin plug that you can fit to the 3 wires from stator to match loom"
- Bolt Easy start Performance CDI (5 pin)
- R11 race coil with silicon waterproof plug cap
- Kill switch
This kit is supplied pre built to order.
Now choice of silicone cover for the CDI and/or rev control switch
To fit the kit you just:
- Fit the kill switch to your bars
- Connect the 3 wires to the stator colour matched if you have jincheng wires see below
- Black/red to Yellow/red
- Blue/white to white/Red
- Green to green or Black/white
- Connect the earth to the inlet manifold
Supplied with Bolt Easy start CDI. This retards the ignition at tick over to reduce chances of kick back
PLEASE NOTE
THE CDI REQUIRES RUBBER MOUNTING TO ENSURE LONGEVITY.
We now do a silicone cover for the CDI, see drop down list..
