Electrics kit to put your bike on the road

We have had a number of calls asking how you can get your bike on the road.

Here we have made a full electrics kit so all you need is a bike and lights.

The kit is made to the common pit bike length but will fit others.

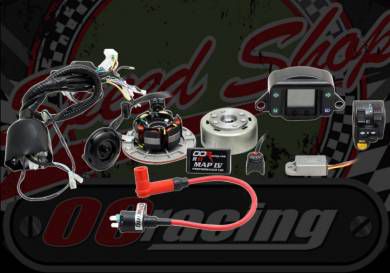

Full spec:

  • Hand made loom
  • Super spin gen kit 530g
  • Reg/rec 75W
  • R11 5 Pin CDI
  • R11 Coil (choice of colour)

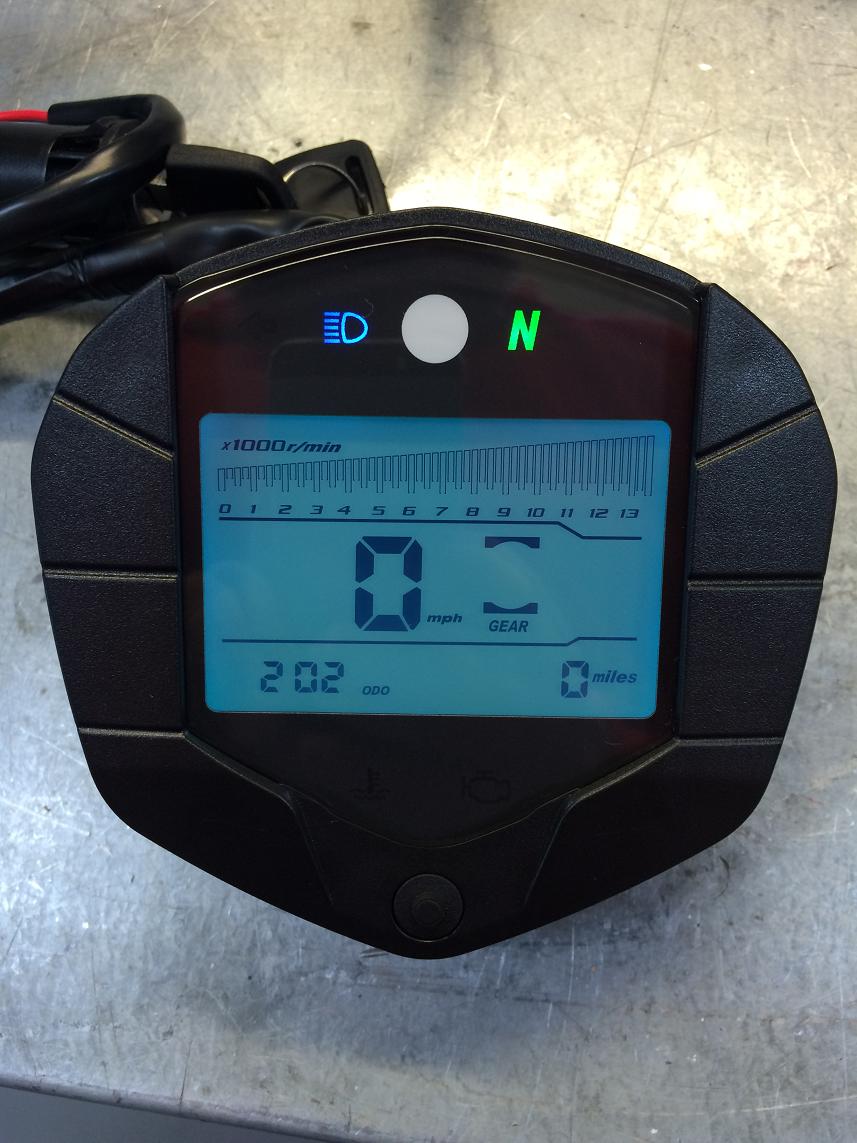

  • X1 Dash with LDC programmable Speedo
  • Multi function switch gear Lights, Horn, Turn, High/Low beam
  • Horn DB
  • 2 way ignition switch with 2 keys



The kit is made so all you have to do is fit the stator to the engine and fit the components.

Every thing that will come in the box will already be plugged in and working.

All you need to complete

  • Flasher unit
  • 4 x Flasher
  • Rear light
  • Battery 12V

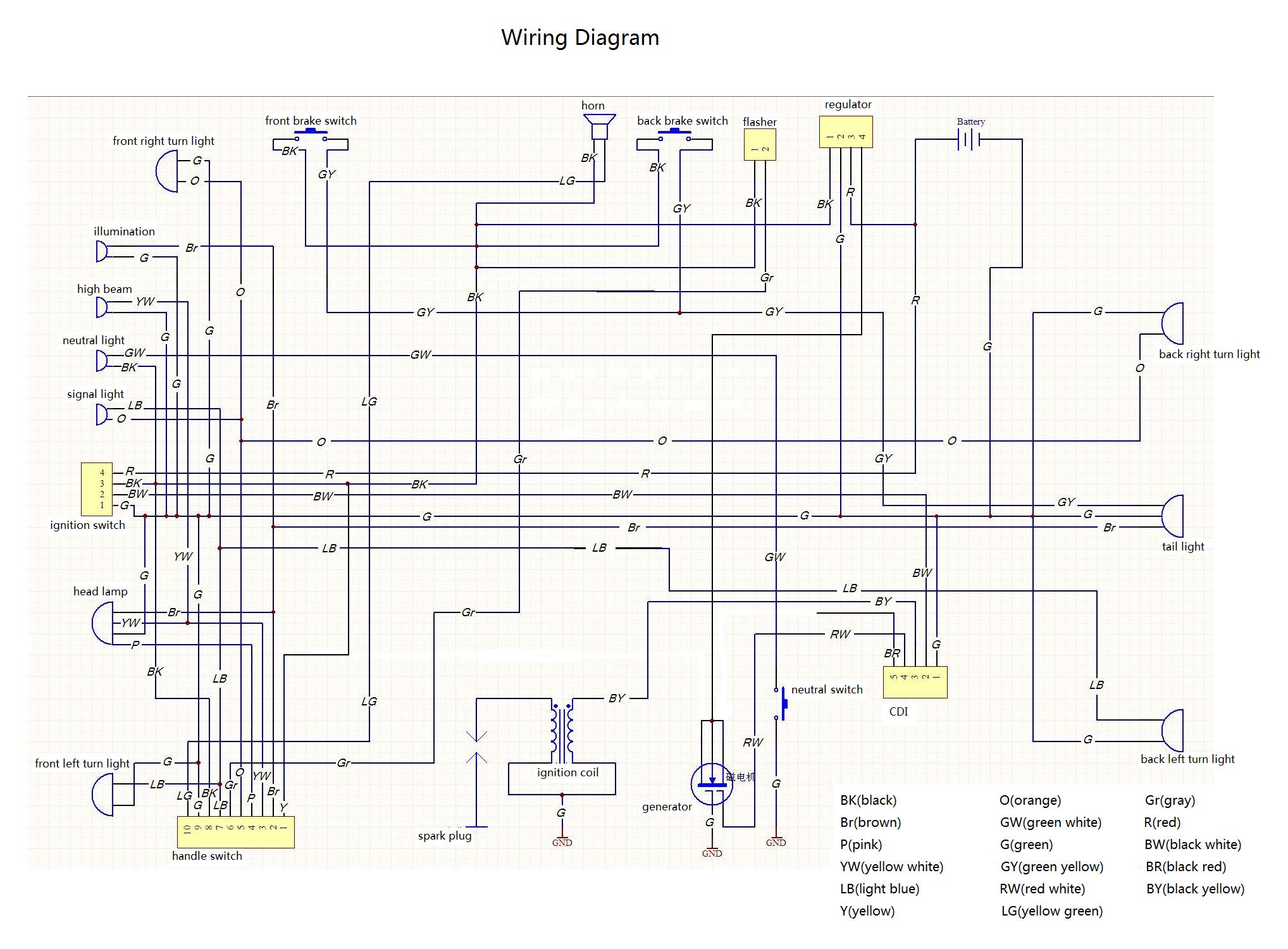

Wiring information:



Instructions and specifications:



PLEASE NOTE

THIS KIT NO LONGER HAS A KILL SWITCH

THE CDI REQUIRES RUBBER MOUNTING TO ENSURE LONGEVITY. THESE RUBBER STRIPS ARE IDEAL. ALTERNATIVELY WE HAVE HIGH DENSITY FOAM PADS THAT MAY SUIT YOUR NEEDS.





Product Code 7632
Condition New
Weight 3Kg
