Loom kit. Monkey & Pit bike running Z190 engine with 3 phase gen and ignition corrector.

Loom kit. Monkey & Pit bike running Z190 engine with 3 phase gen and ignition corrector.
  • Click to enlarge

£190.00 £158.33 ExVAT


Product Code: 3183

Loom kit. Monkey Pit Bike running Z190 engine with 3 phase gen and ignition corrector.

This kit is for those who have fitted the Z190 to a monkey/pitbike

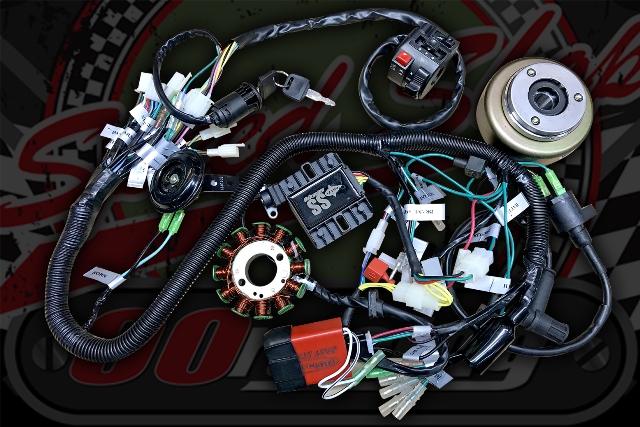

What’s in the kit

1 x High grade pre labelled loom

1 x Ignition switch “2 Keys”

1 x L/H switch gear CBR type all in one.

1 x Push button start switch

1 x 4 pin CDI Red TAG

1 x 3 phase stator and reg/rec 100W

1 x Large taper flywheel with ignition corrector

1 x 12V coil

1 x 12V E4 horn

1 x Wiring diagram paper & pin lay out

The loom has optional extras in it, dash plug with warning lights and rev counter signal

Parts you should have already

12V solenoid

Heavy cables battery to solenoid and solenoid to starter motor, heavy negative battery to engine. part number 8919

Important! If you don’t have the heavy Neg cablefrom the battery engine block the first time you hit the starter it will melt the wiring loom & stator.

Product Code 3183
Condition New
Weight 4Kg
