Loom. YX 150. Electric start engines and other D/C powered engines. Universal

Loom. YX 150. Electric start engines and other D/C powered engines. Universal
  • Click to enlarge

£13.00 £10.83 ExVAT


Product Code: 9691

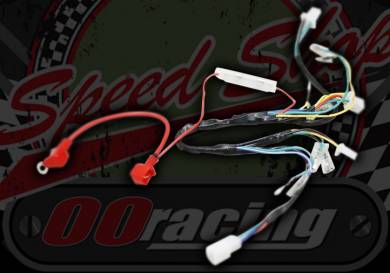

Loom for YX 150 E start engines and other D/C powered engines.
This loom has the below functions

CDI 4 pin D/C type
Electric start switch
Single phase charging
Ignition switch

Wiring colours
Blue/white = Trigger
Red + = Battery feed in
Green -  = Earth and battery
Black/yellow = Coil feed
2 Yellows = Engine to regulator single phase
Black = switched powered + to feed CDI

If you need any help just call us..

Product Code 9691
Condition New
Weight 0.3Kg
