Inlet Manifold, 22mm. Bolt on. Off set. Back. Left.

Inlet Manifold, 22mm. Bolt on. Off set. Back. Left.
  • Click to enlarge

£23.20 £19.33 ExVAT

Product Code: 0878

Manifold. High end not Chinese

Off-set back left

Offset to left when sitting on bike when fitted back facing.

Suitable for use with monkey, pit and dax bikes. 70cc to 110cc

Will also work with the Sachs Madass with 72cc conversion.

Very well made from Taiwan not China.

Some bigger float bowel carbs like PZ22 you may have to trim down the cylinder fins if they are the larger type

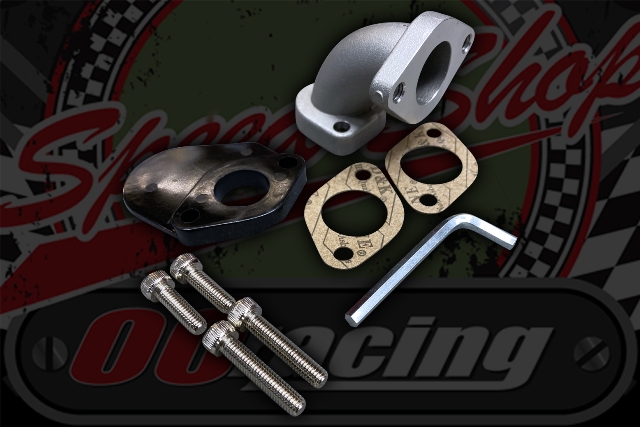

Kit includes:

  • Heat spacer (Head to Manifold) Tongue can be removed or left on
  • bolts to fix manifold both ends
  • 2 gaskets
  • 5mm allan key


Specifications:

  • 24mm Aperture Carb side.
  • 21mm Aperture at head end
  • 70mm height (overall)
  • 9mm thick heat spacer
  • 45mm fixing to Cylinder head. centre to centre
  • 48mm Fixing to Carb. Centre to centre.
  • Back Left



PLEASE NOTE:

THIS IS CLASSED AS A 22MM MANIFOLD EVEN THOUGH IT IS 24MM and 21MM apertures

Product Code 0878
Condition New
Weight 0.2Kg
